STEP model and camera FOV data
Camera FOV values:
Metric | Value [°] |
---|---|
Diagonal Field of View (DFOV) | 106.8 |
Horizontal Field of View (HFOV) | 100 |
Vertical Field of View (VFOV) | 64 |
The DFOV is the angle subtended by the diagonal of the camera sensor onto the center of the lens.
Link to the STEP file:
Hardware Version | Active until | |
---|---|---|
1.2a | ||
1.2b | --- current --- |
Ilustrations:
![dhv-fov.png](../__attachments/185794576/dhv-fov.png?inst-v=e65987b7-7f92-4b87-8e0b-82ace1c12534)

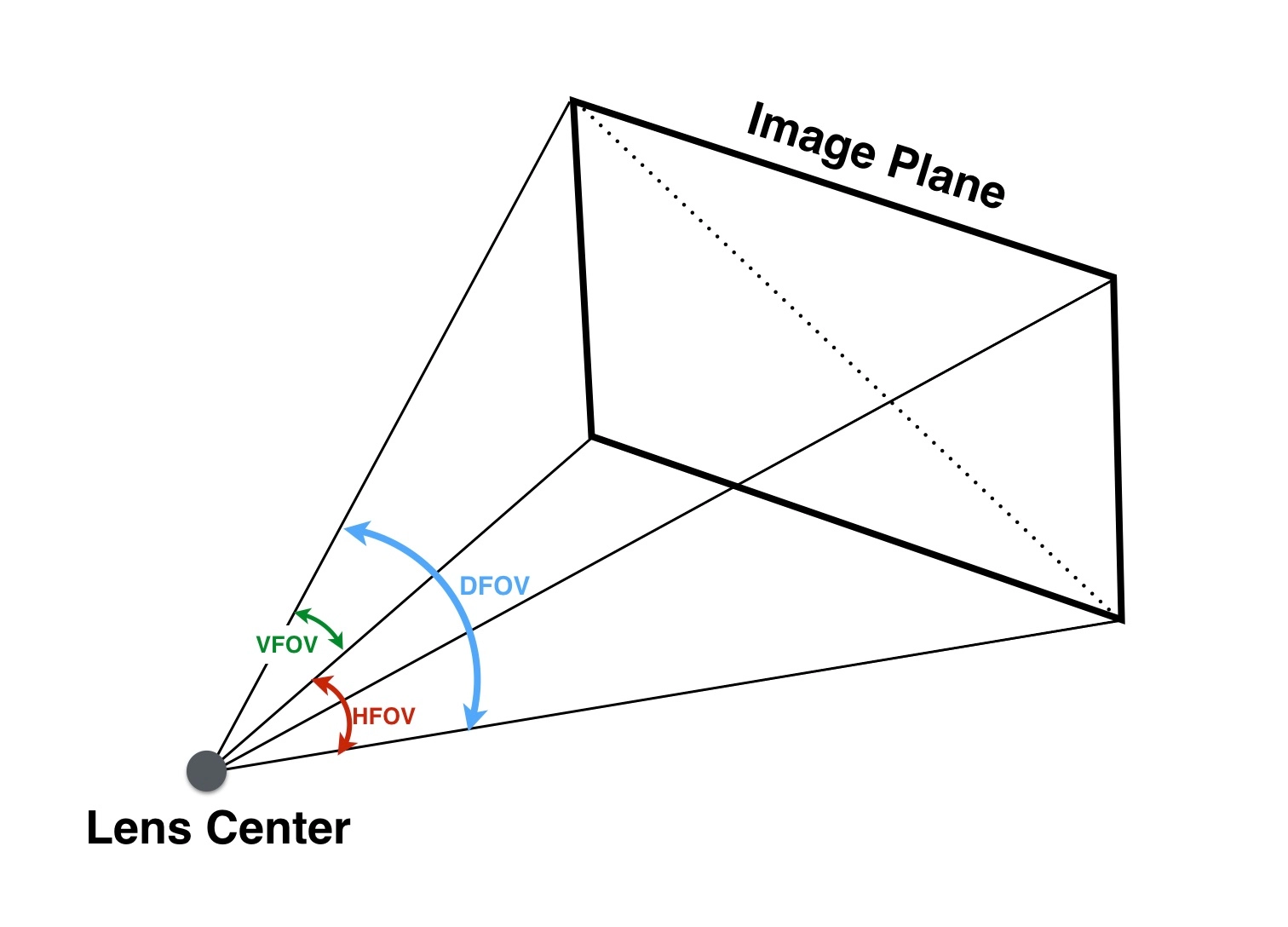

Illustration of the definition of D-H-V Field of View (FOV)
![vrtk2-fov-schematic.png](../__attachments/185794576/vrtk2-fov-schematic.png?inst-v=e65987b7-7f92-4b87-8e0b-82ace1c12534)

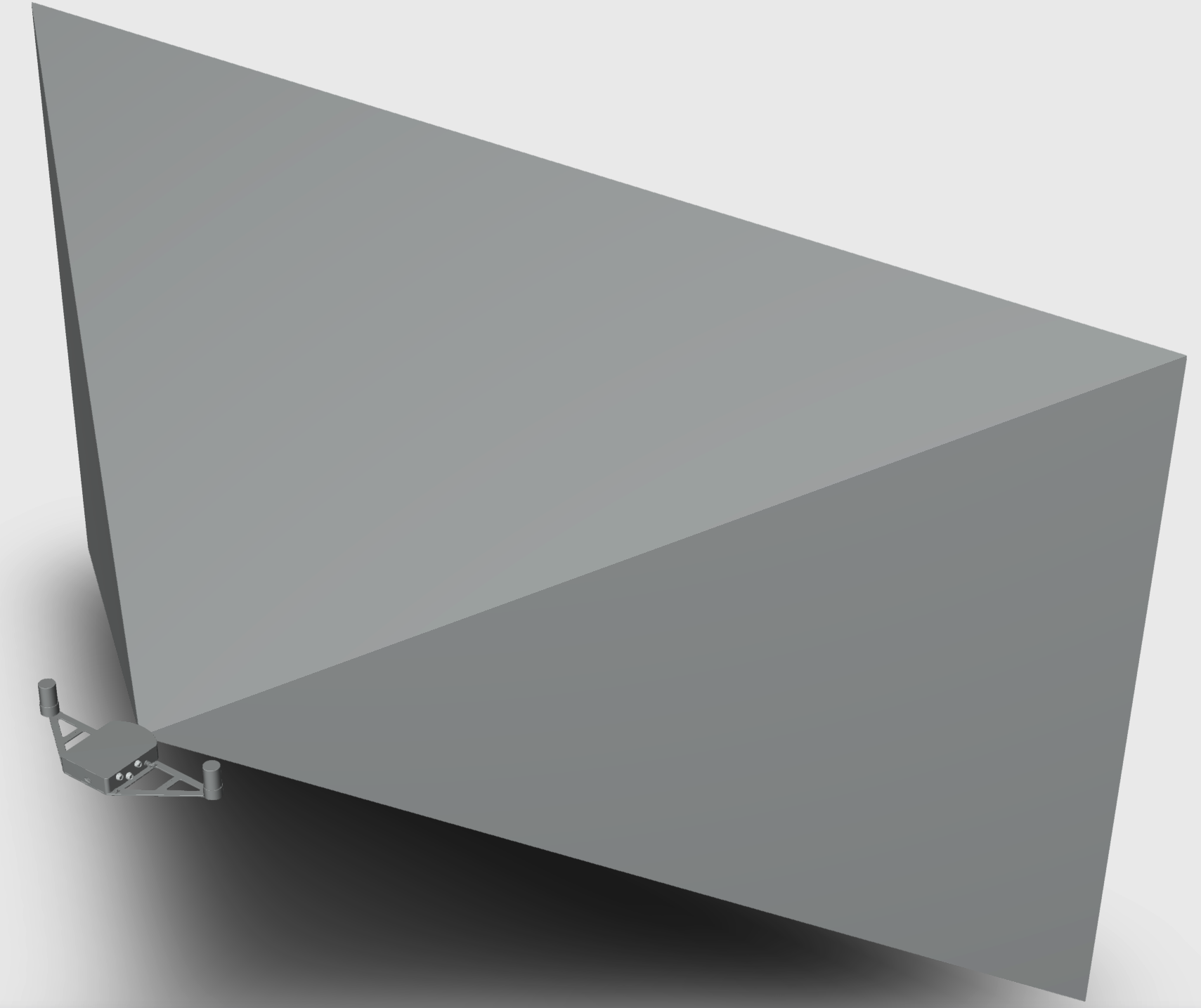

Schematic of VRTK2's Field of View (FOV)
