HX-CHX600A

Setup

MicrosoftTeams-image (9).png

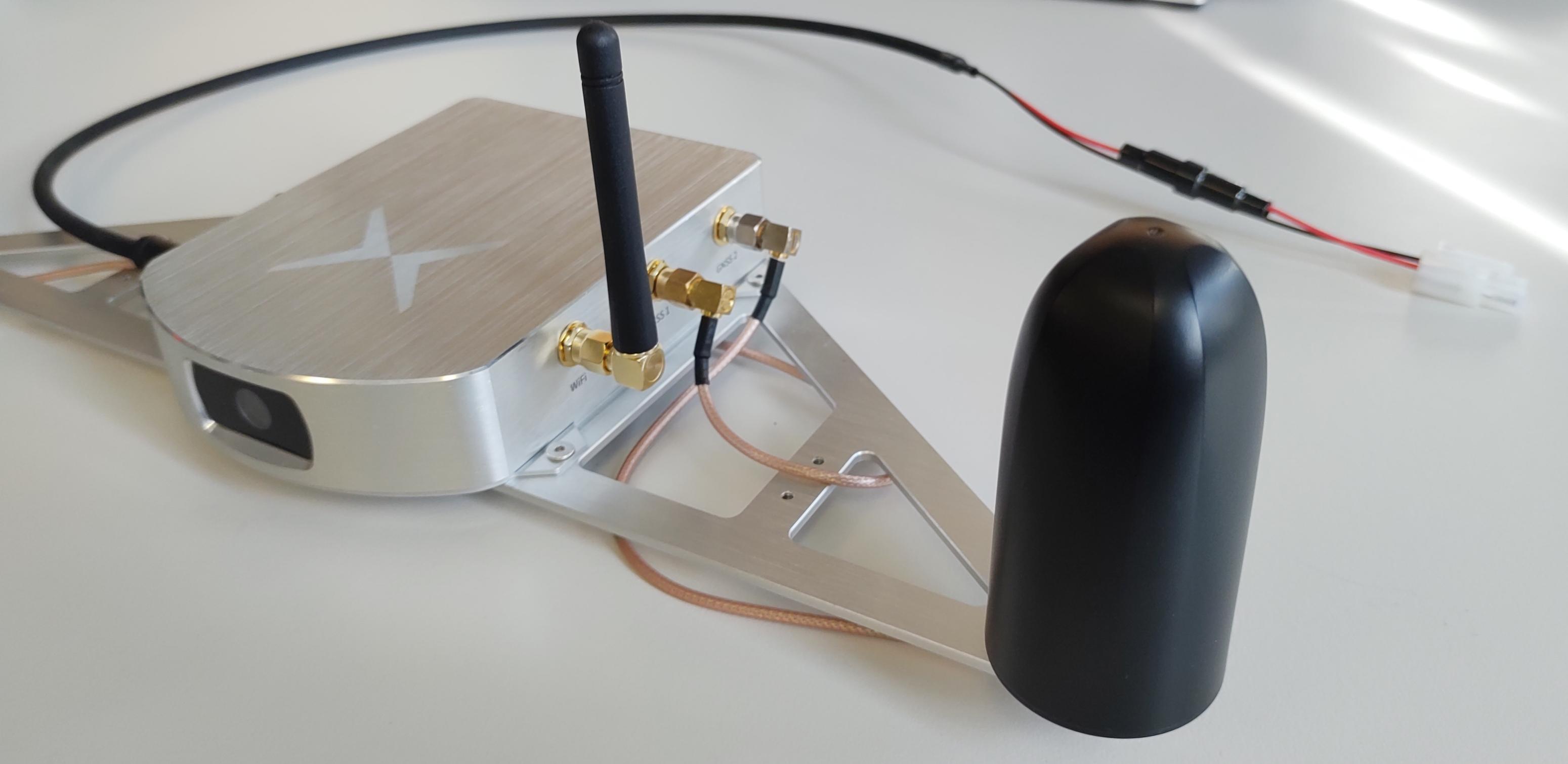

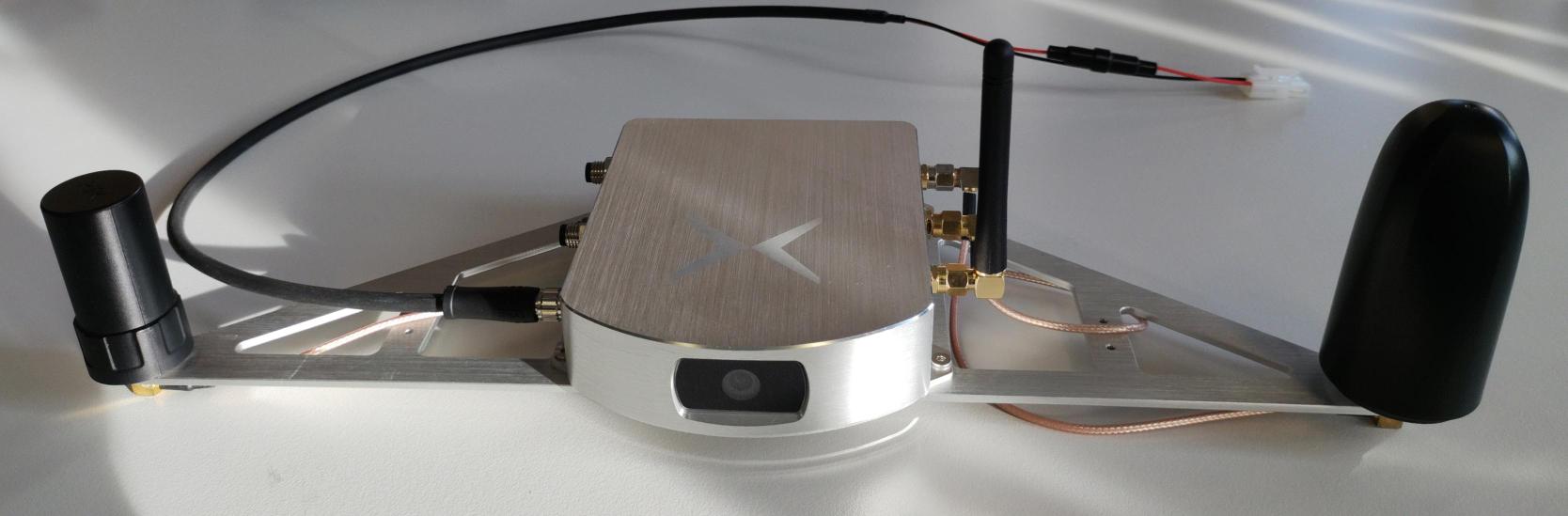

Fig. 1: VRTK2 with HX-CHX600A
MicrosoftTeams-image (11).png
Fig. 2: HX-CHX600A antenna

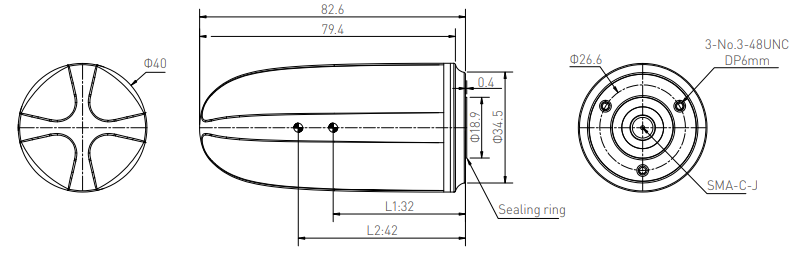

Antenna phase center:


Test results

Stationary 1

In this test the HX-CHX600A antenna was connected to GNSS2.

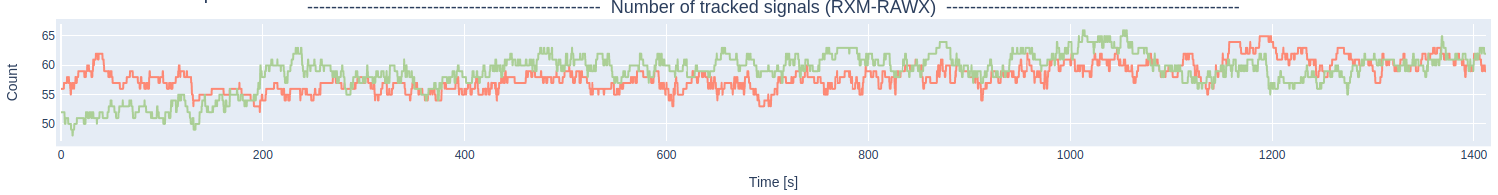

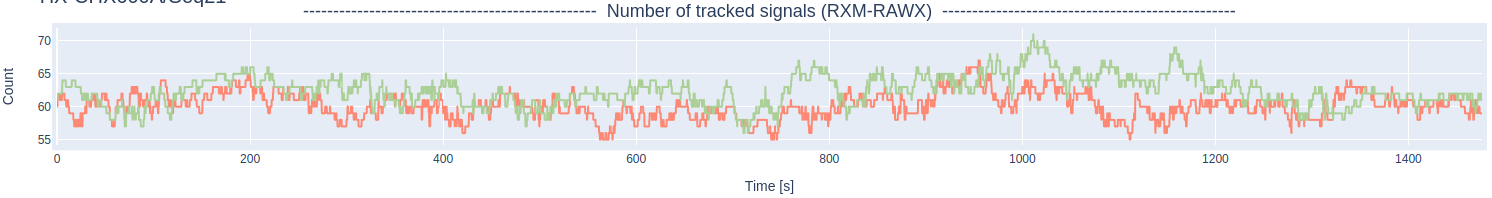

Number of tracked signals

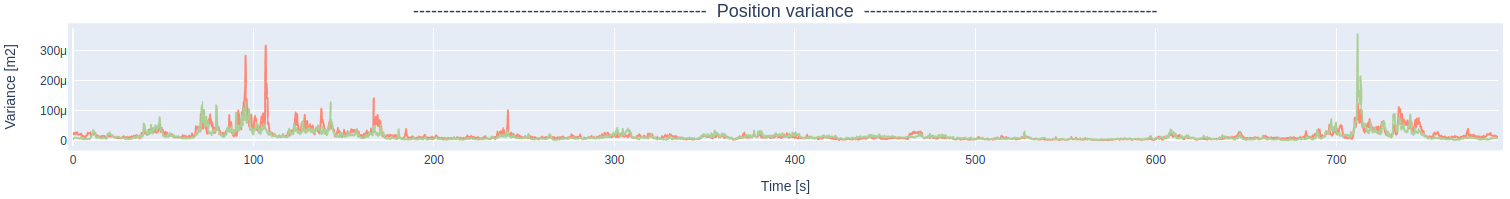

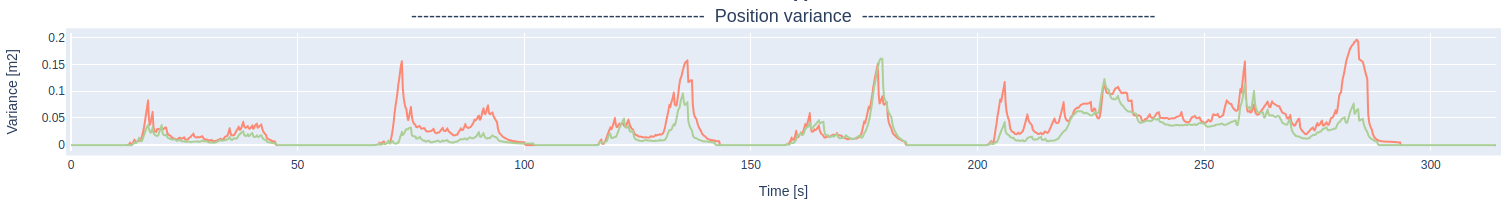

Position variance

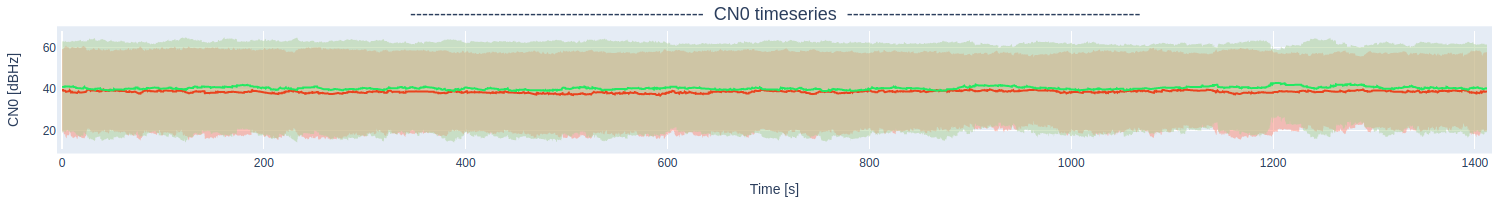

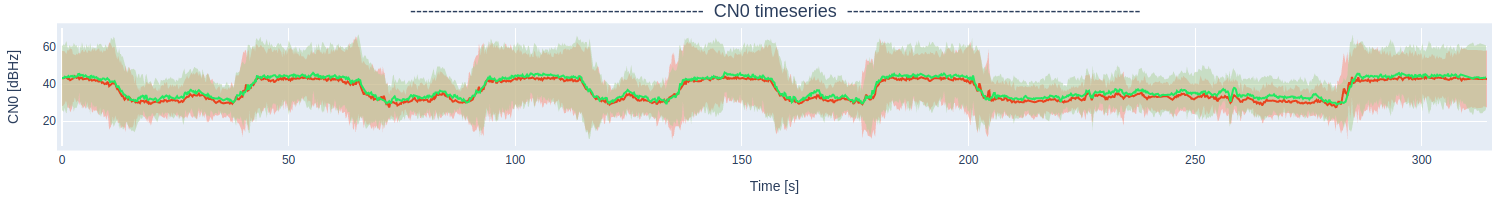

CN0 timeseries

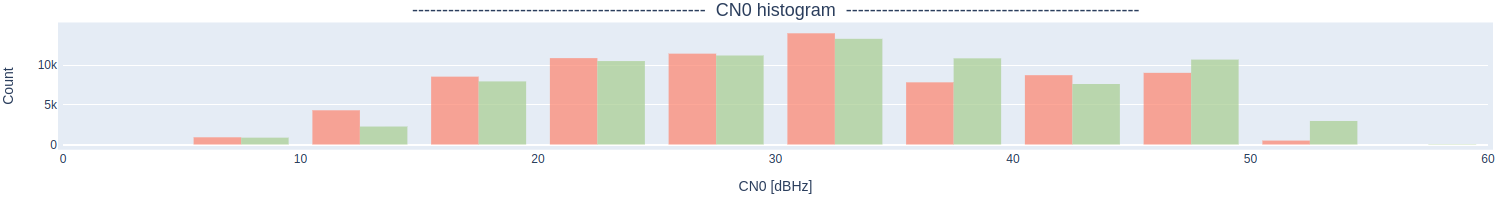

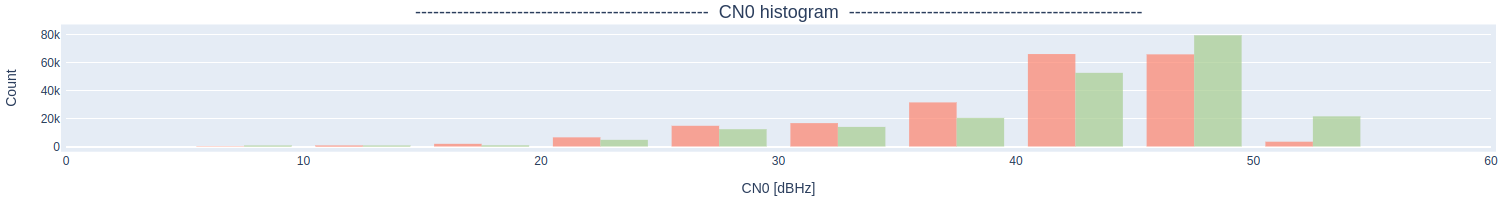

CN0 histogram

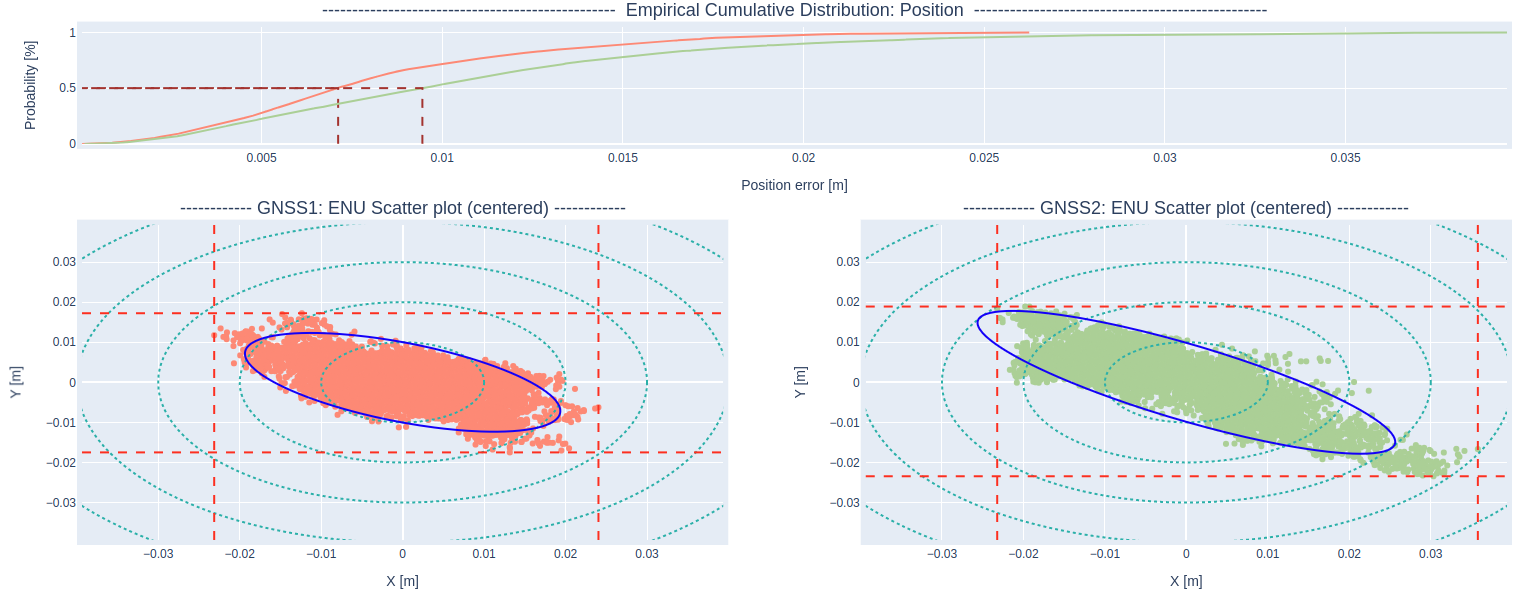

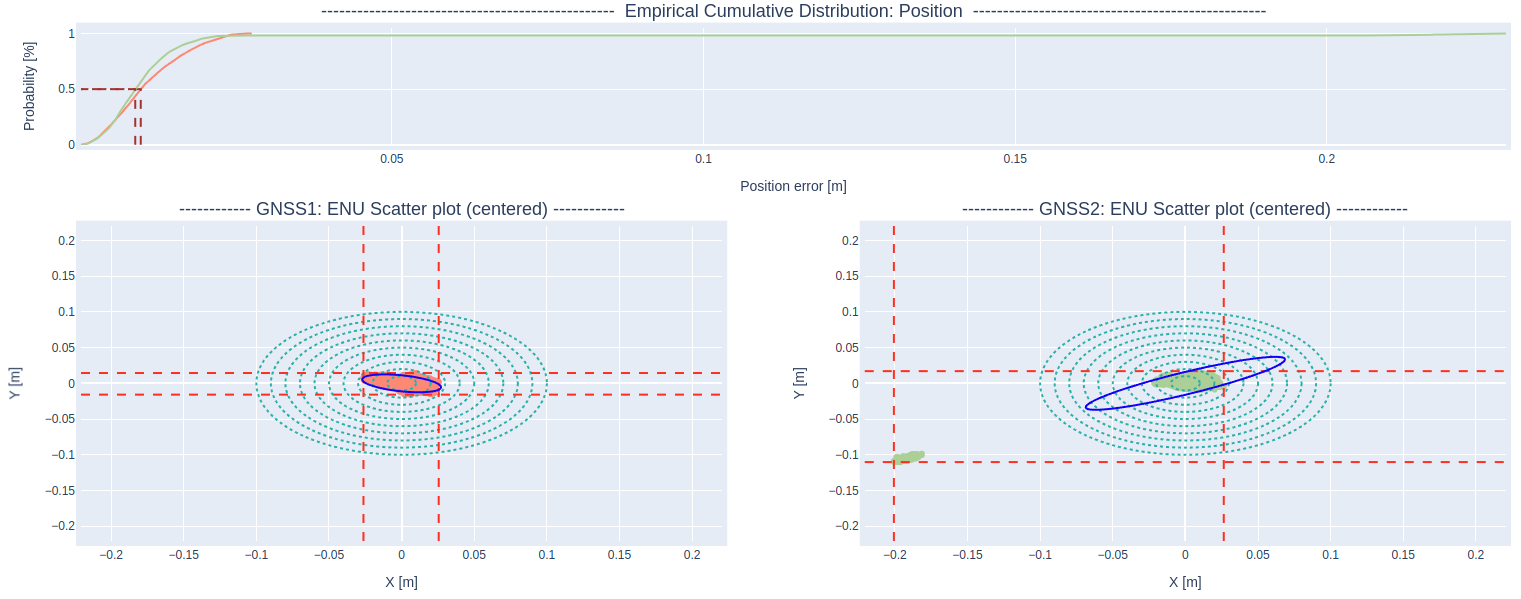

ENU position estimate statistics

Timeseries file:

antennas1-chx600a.html

Link to KML file: 2023-01-19-14-09-53

Links to raw GNSS data: GNSS1, GNSS2

Stationary 2

In this test the HX-CHX600A antenna was connected to GNSS1.

Number of tracked signals

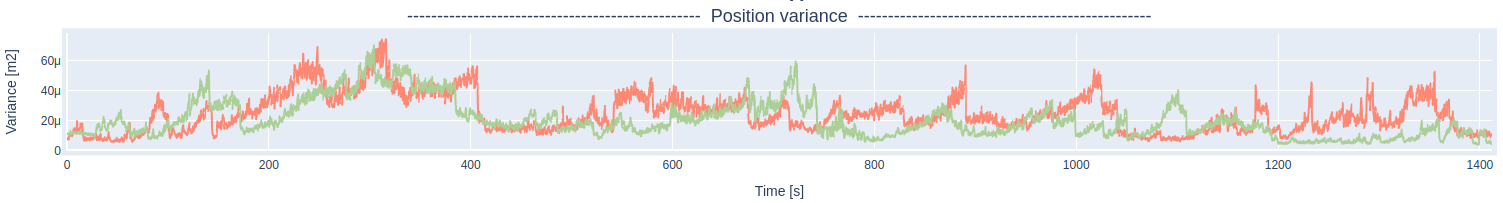

Position variance

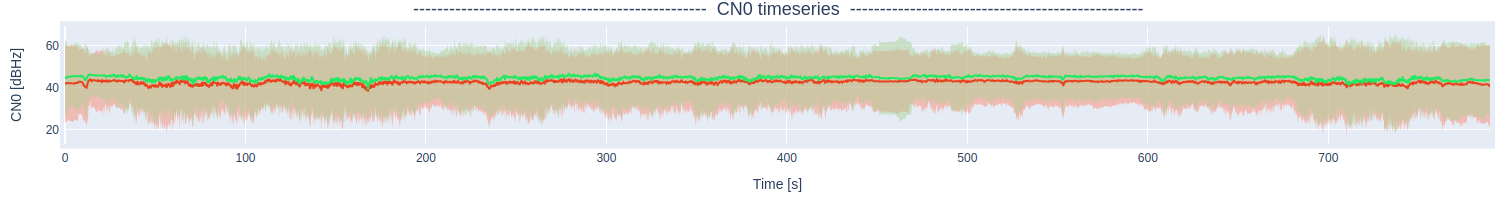

CN0 timeseries

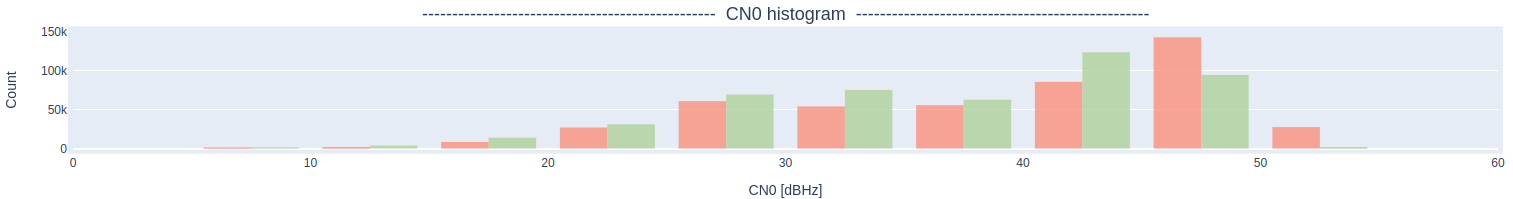

CN0 histogram
ENU position estimate statistics

Timeseries file:

antennas2-chx600a.html

Link to KML file: 2023-01-19-14-36-39

Links to raw GNSS data: GNSS1, GNSS2

Urban canyon

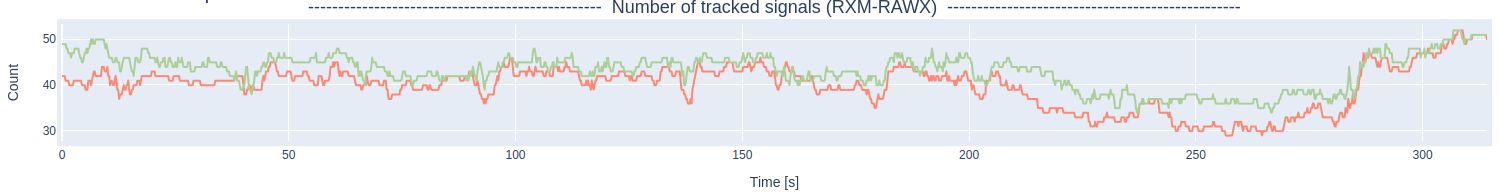

Number of tracked signals

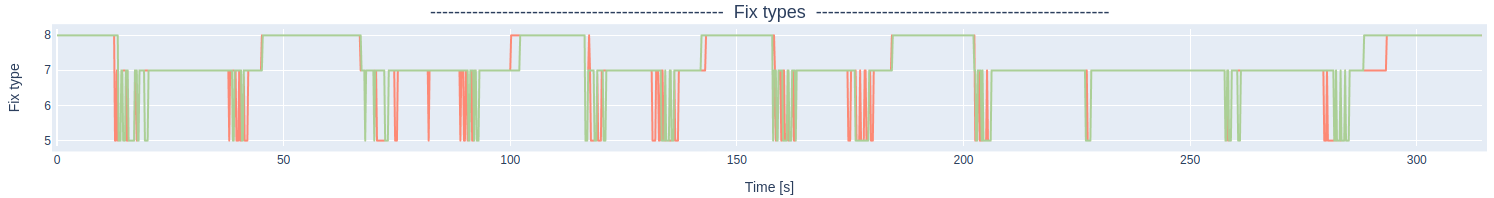

Fix types
Position variance

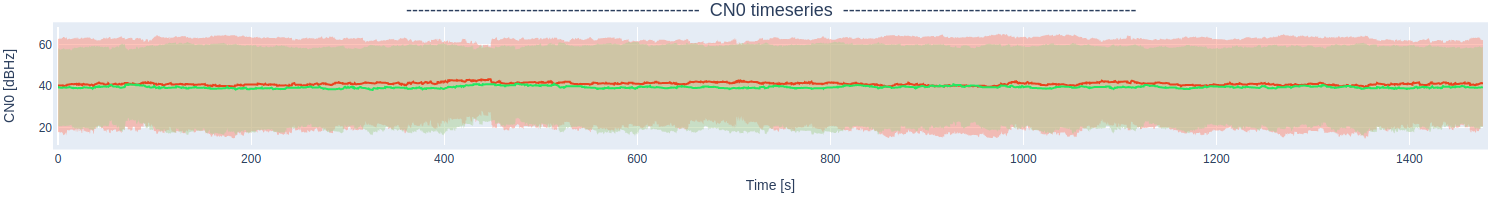

CN0 timeseries
CN0 histogram

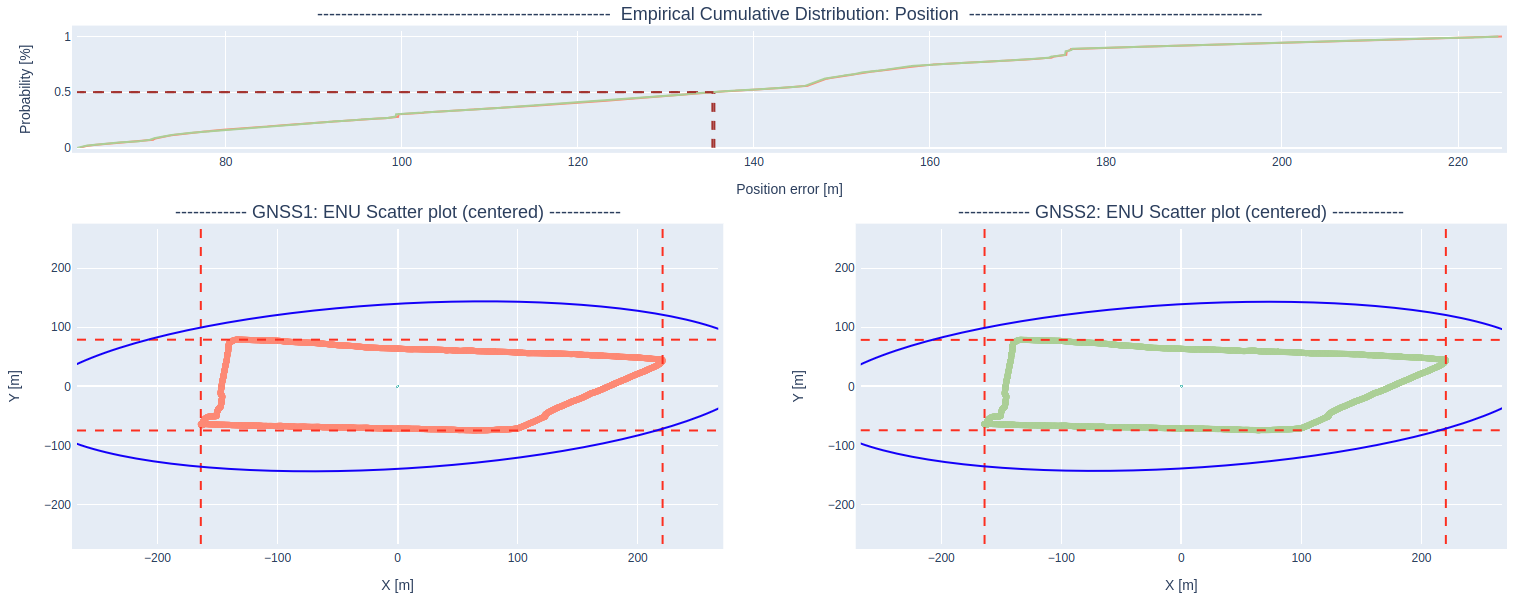

ENU position estimate statistics

Timeseries file:

antennas3-chx600a.html

Link to KML file: 2023-01-19-09-56-46

Links to raw GNSS data: GNSS1, GNSS2

GNSS outage

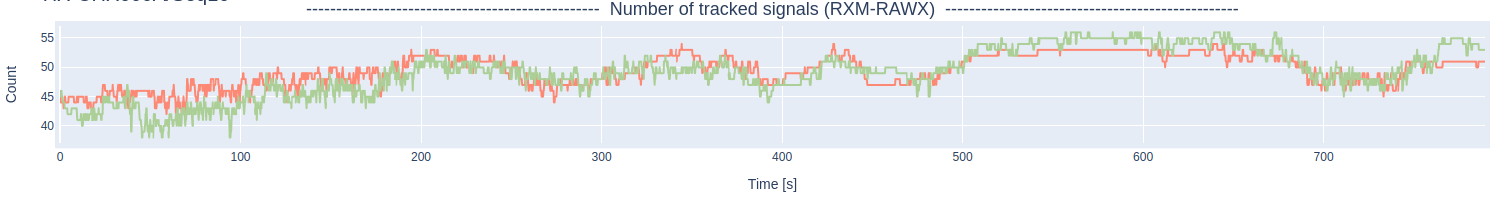

Number of tracked signals

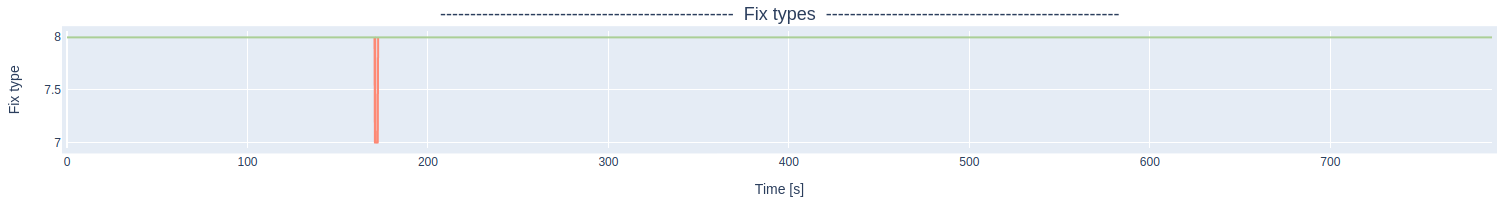

Fix types

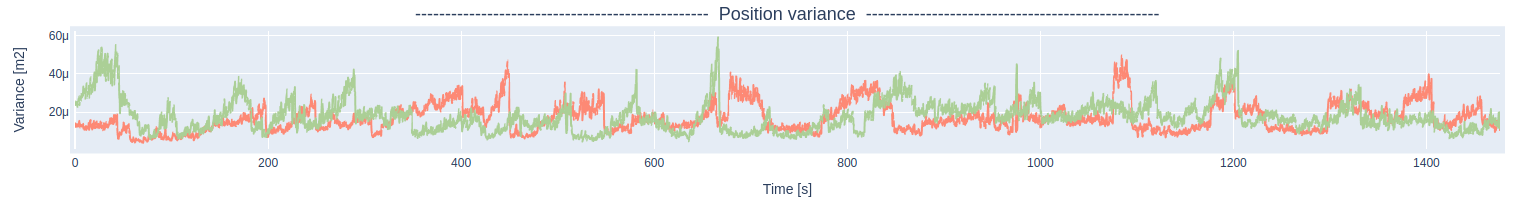

Position variance
CN0 timeseries

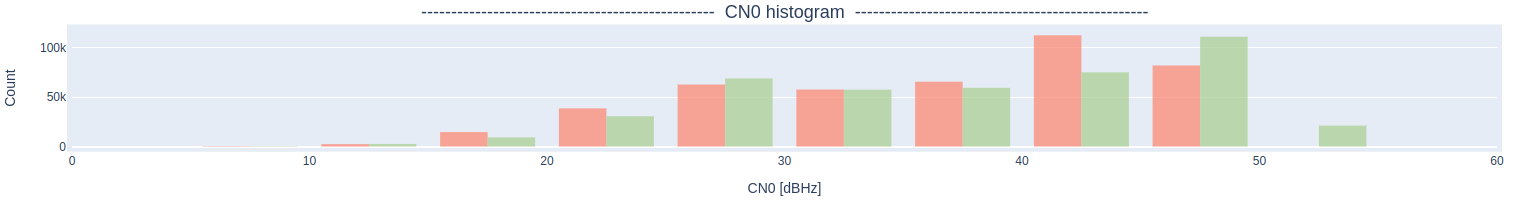

CN0 histogram

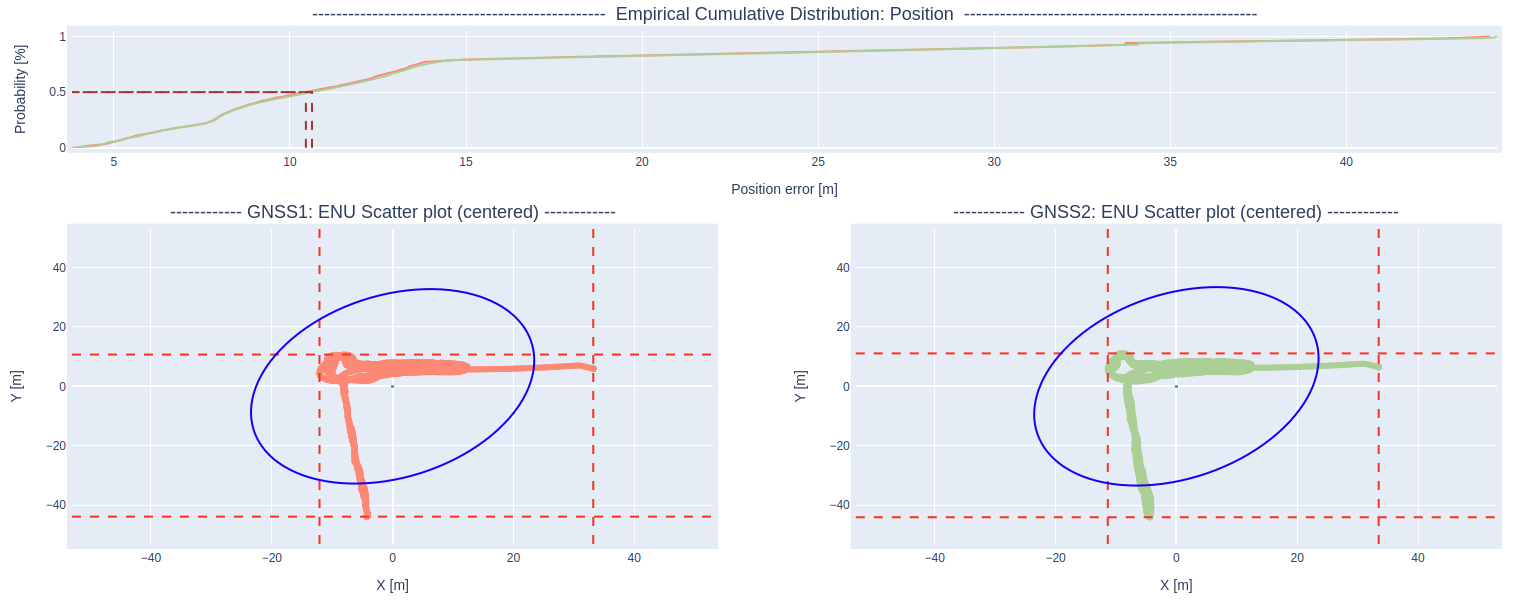

ENU position estimate statistics

Timeseries file:

antennas4-chx600a.html

Link to KML file: 2023-01-19-10-11-35

Links to raw GNSS data: GNSS1, GNSS2

Observations

  • This antenna presents a significantly better signal power distribution.

  • This antenna was able to re-fix significantly faster than our current antenna.

  • This antenna stayed at RTK-float even when our antenna was under Single-3D.

Conclusions

  • Excluding price considerations, this antenna could serve as a higher quality replacement for our current AH-3232 antenna.

  • More testing needs to be done to analyze the effect of false fixes with this antennas.

  • Seems very similar to the reference.

  • Acceptable.
