HX-CH7604A

Setup

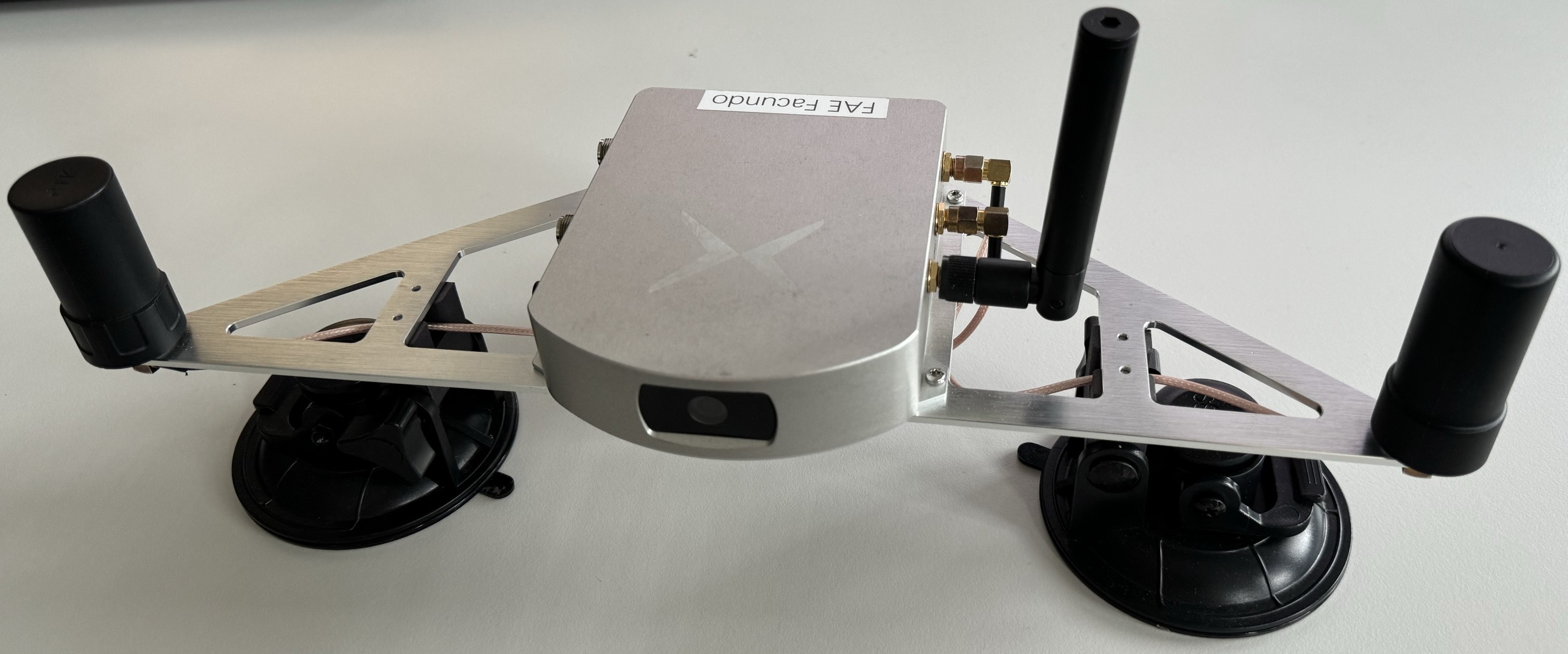

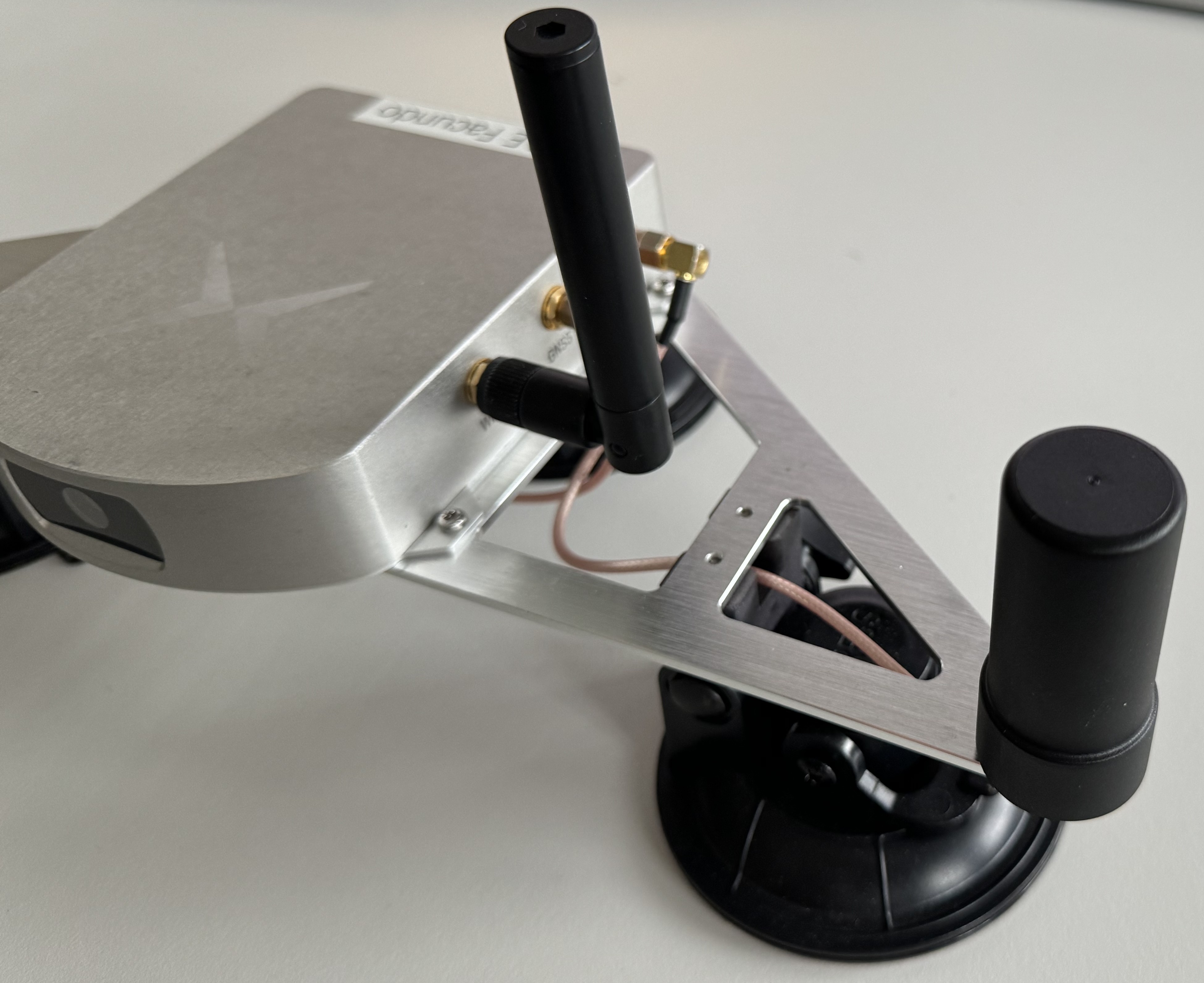

Fig. 1: VRTK2 with HX-CH7604A

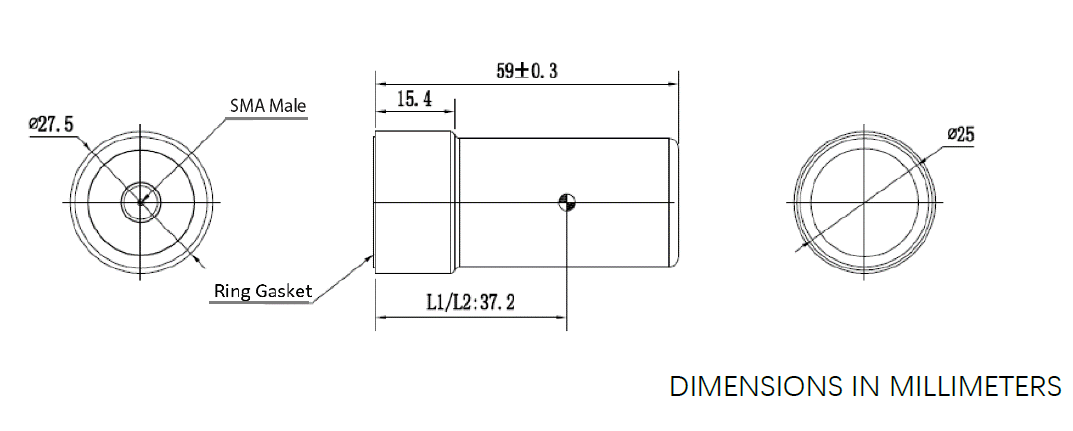

Fig. 2: CH7604A antenna

Antenna phase center:


Test results

Stationary 1

In this test the HX-CH7604A antenna was connected to GNSS2.

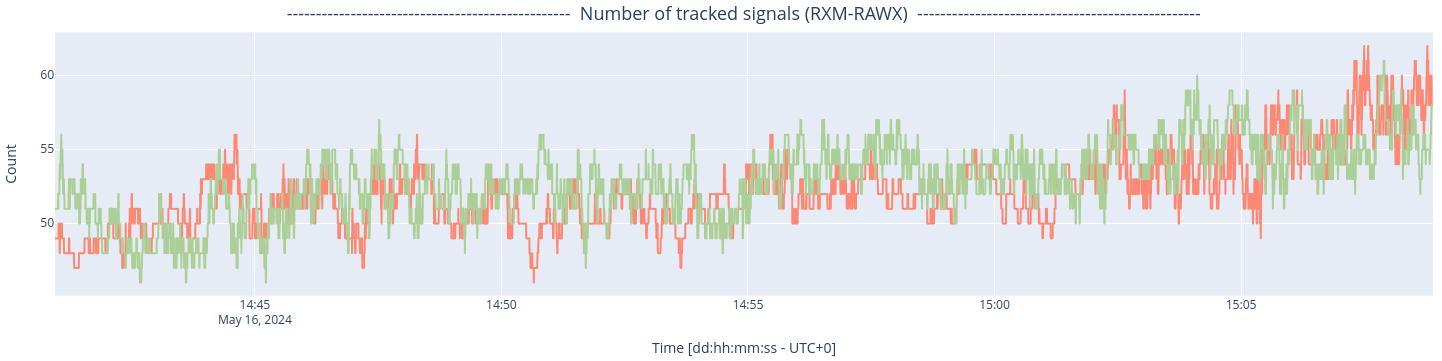

Number of tracked signals

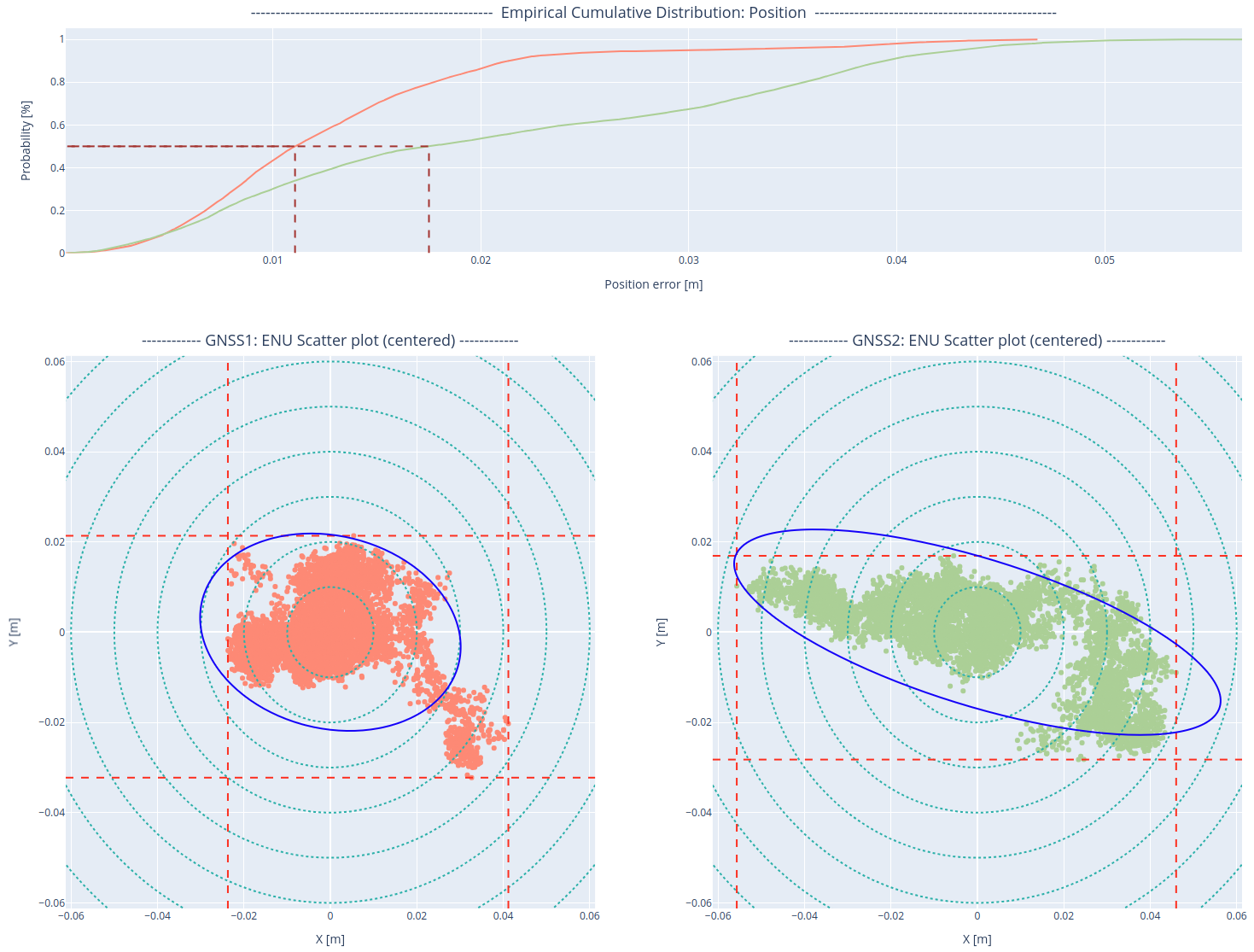

Position variance

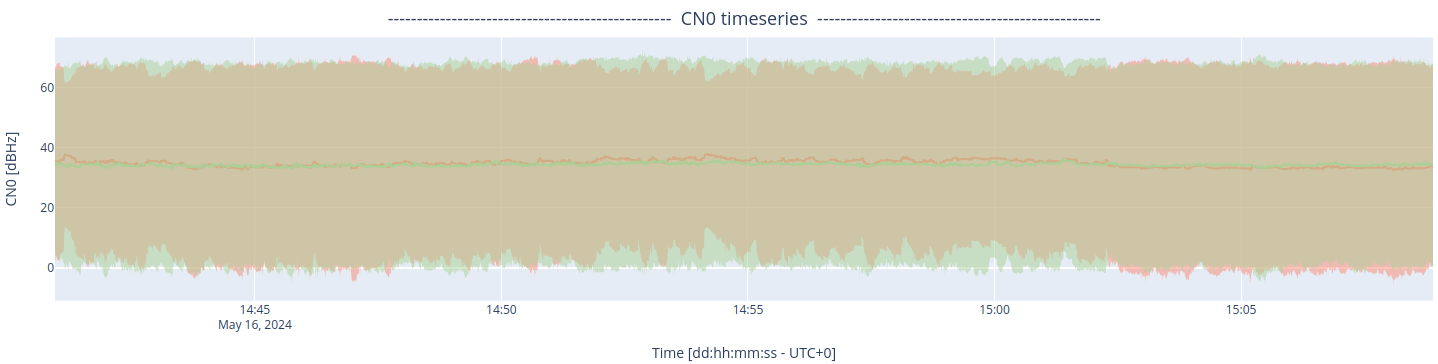

CN0 timeseries

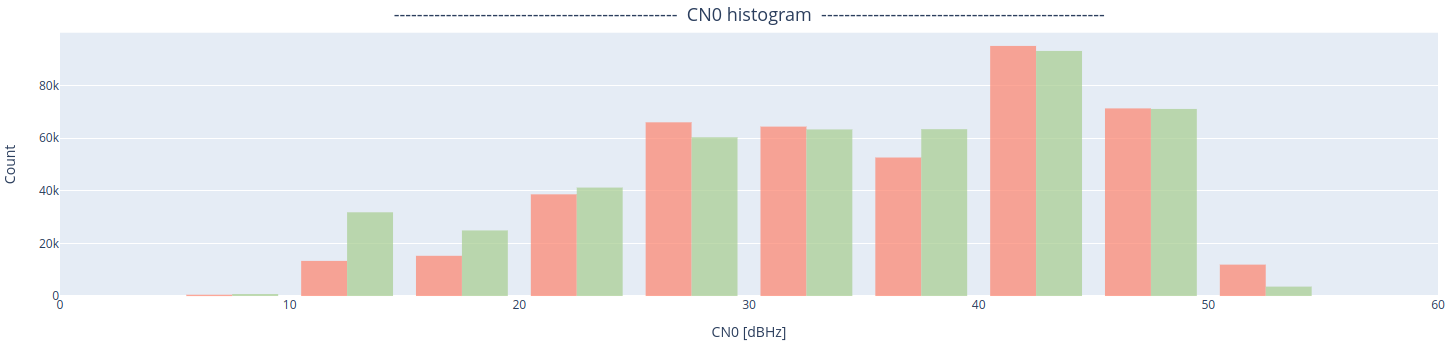

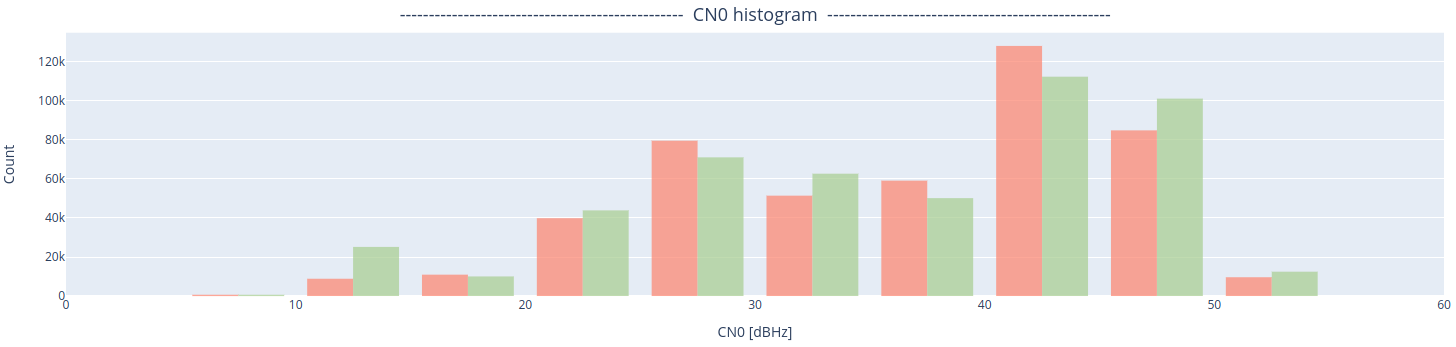

CN0 histogram

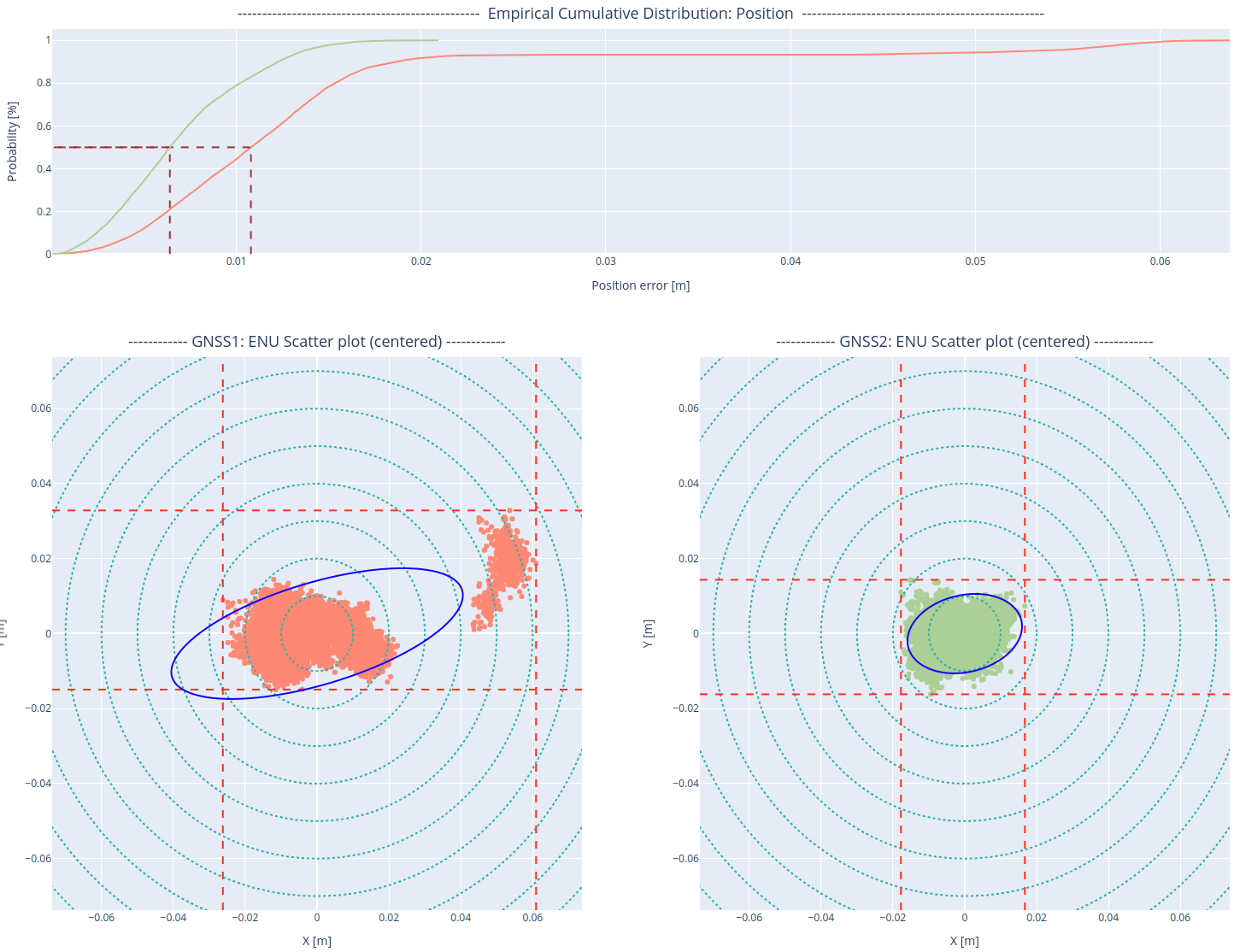

ENU position estimate statistics

Timeseries file:

antennas1-ch7604a.html

Link to KML file: 2024-05-16-12-40-56

Links to raw GNSS data: GNSS1, GNSS2

Stationary 2

In this test the HX-CH7604A antenna was connected to GNSS1.

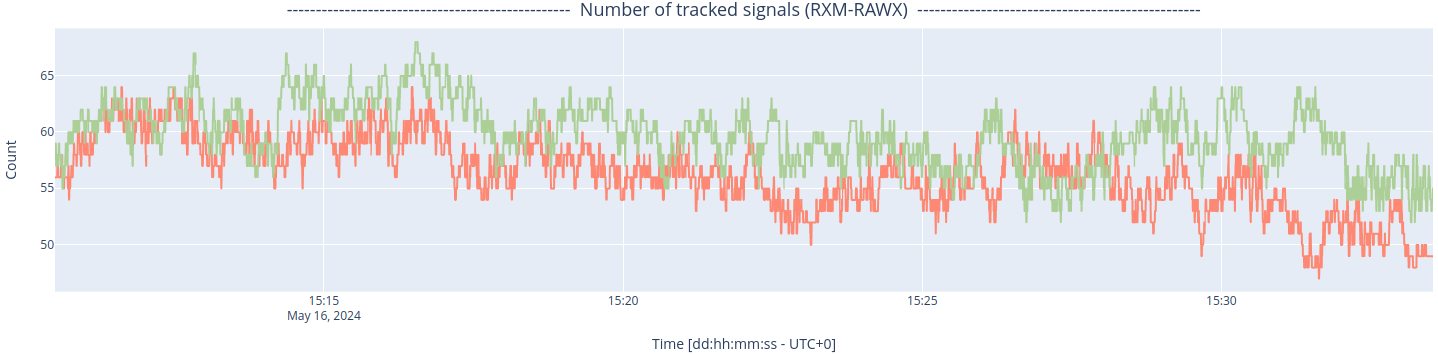

Number of tracked signals

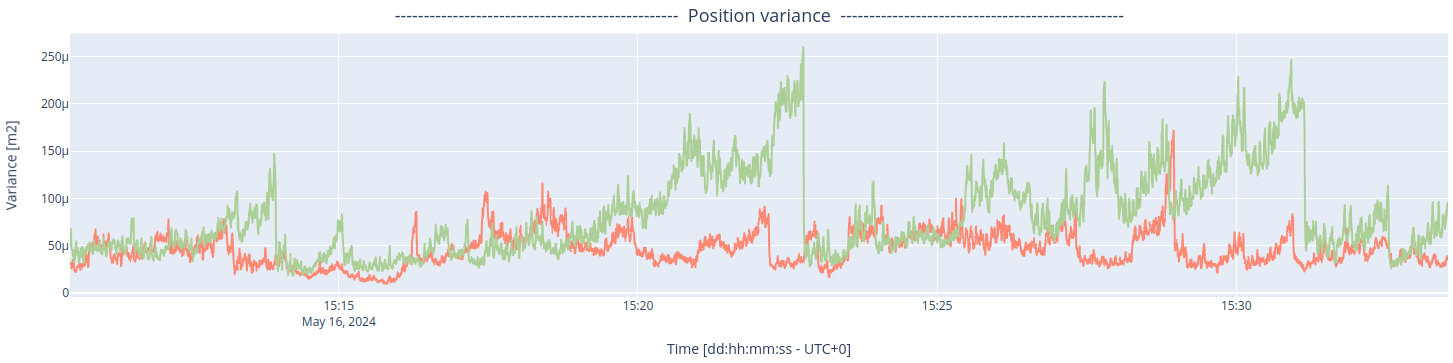

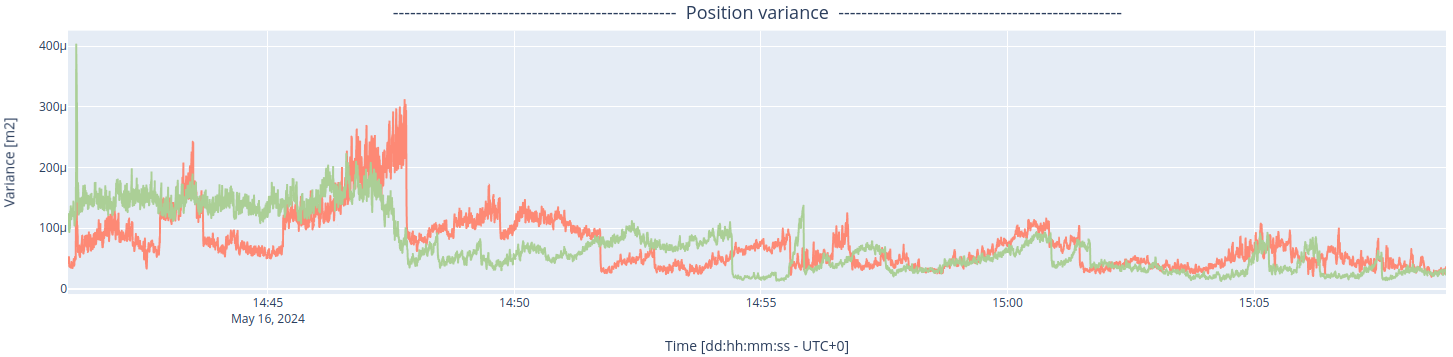

Position variance

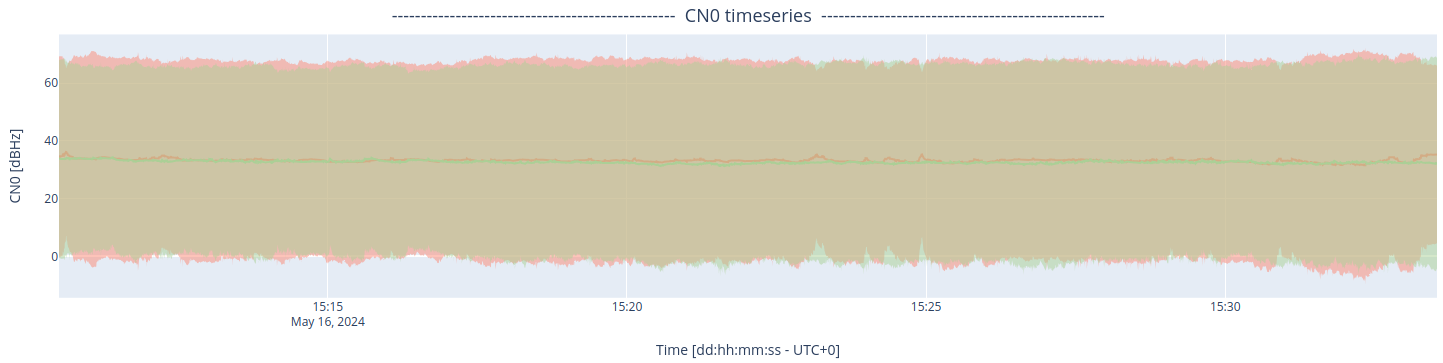

CN0 timeseries


CN0 histogram


ENU position estimate statistics

Timeseries file:

antennas2-ch7604a.html

Link to KML file: 2024-05-16-13-10-29

Links to raw GNSS data: GNSS1, GNSS2

Urban canyon

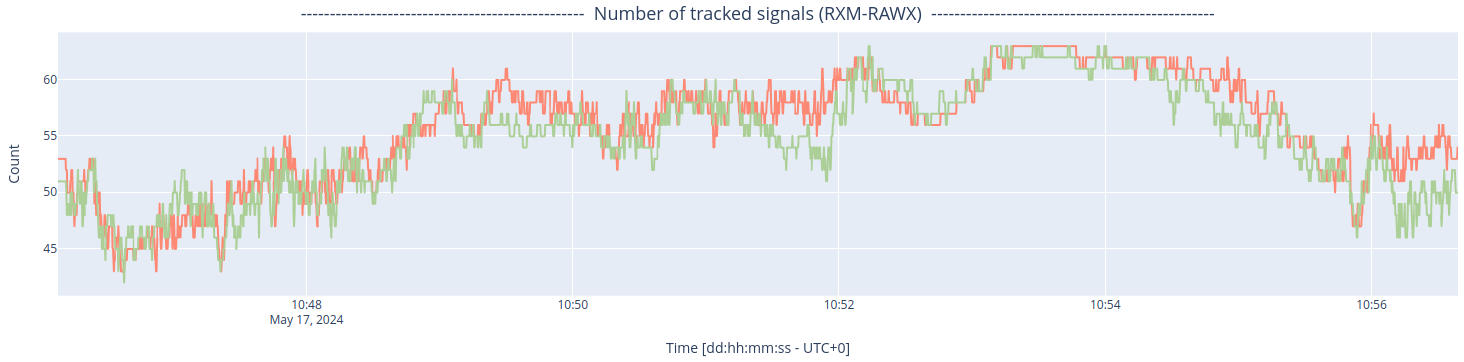

Number of tracked signals

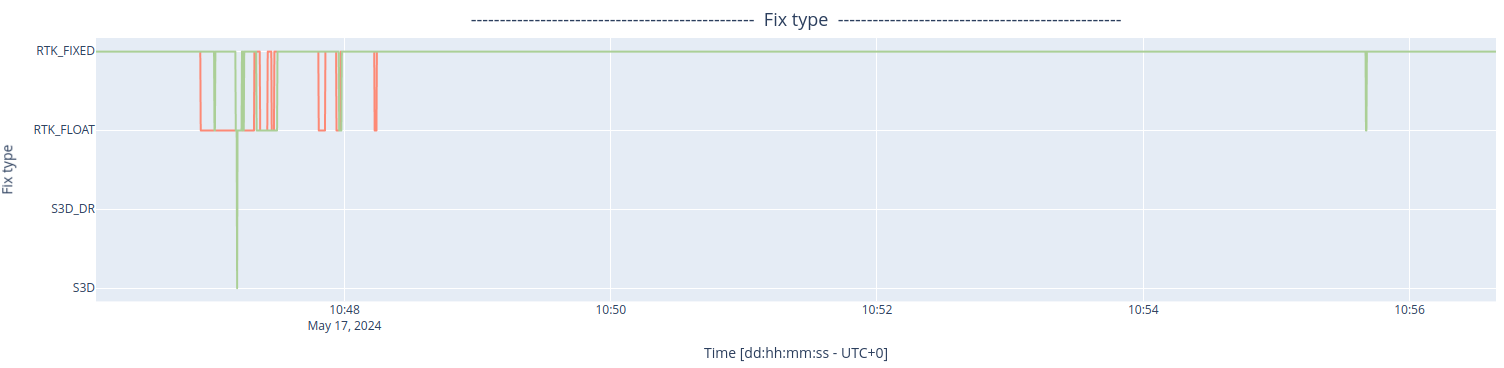

Fix types

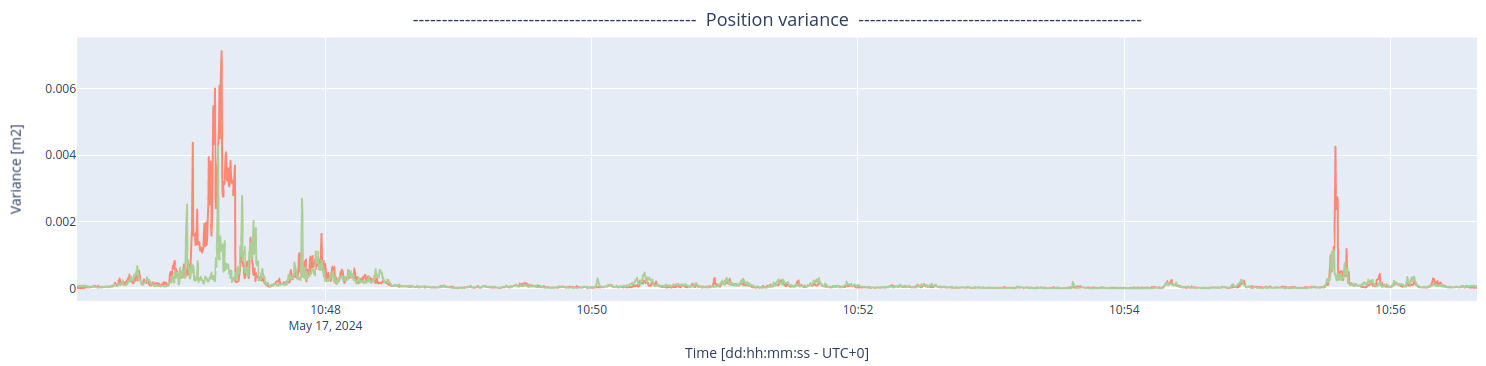

Position variance

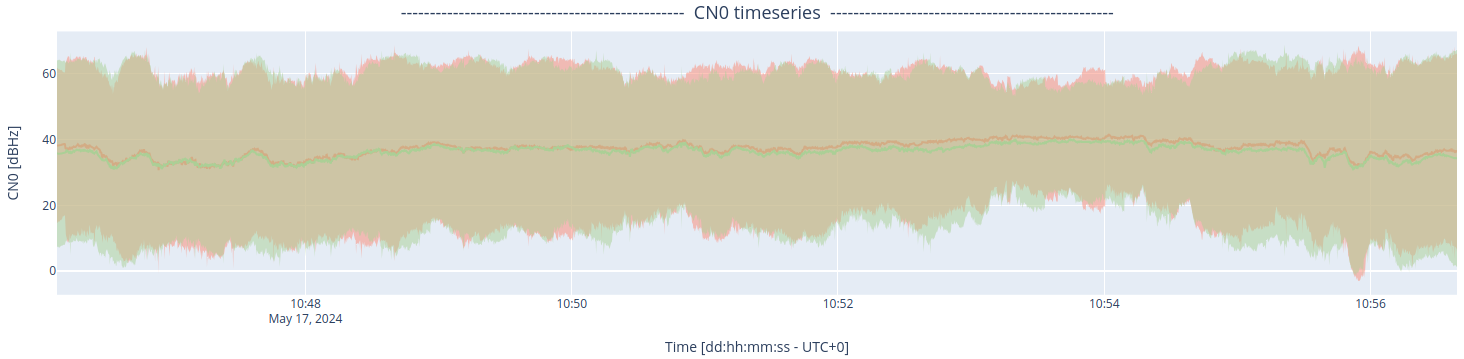

CN0 timeseries

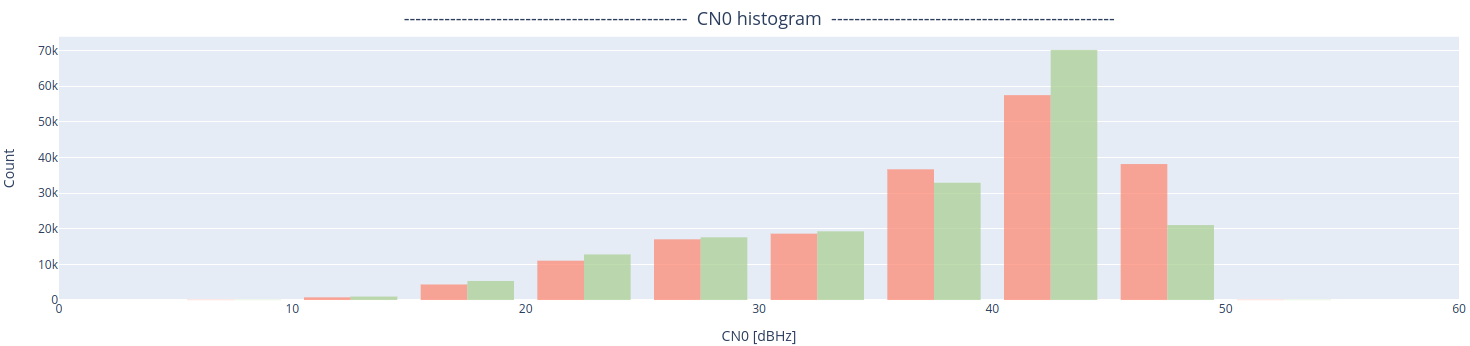

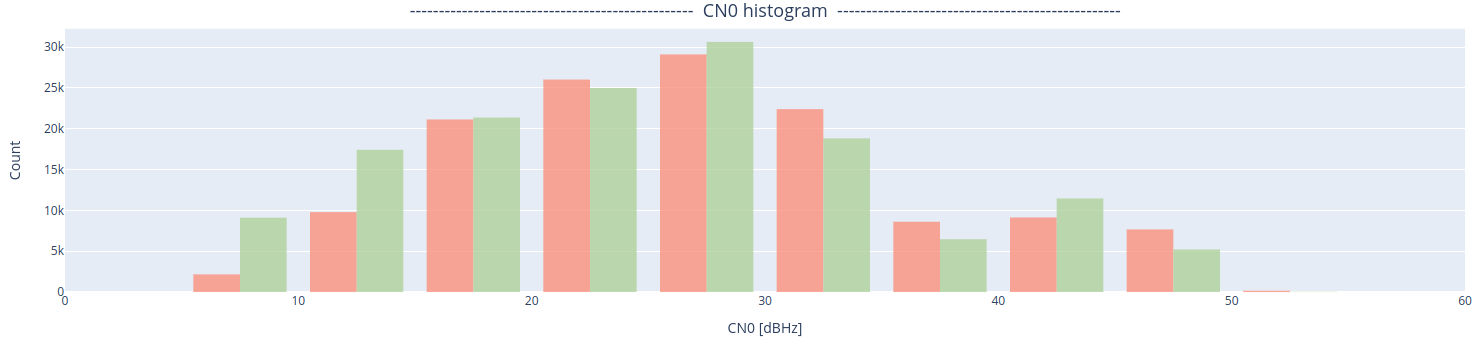

CN0 histogram

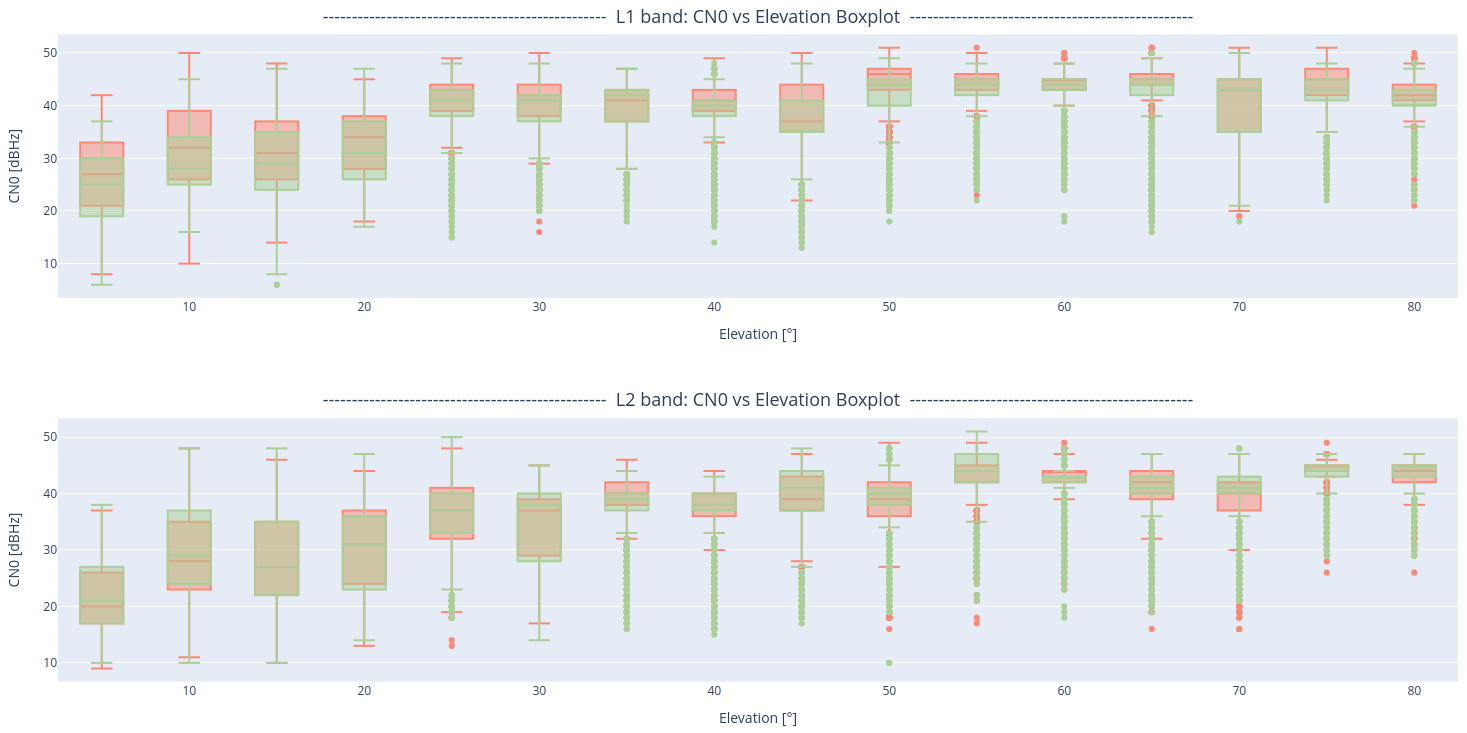

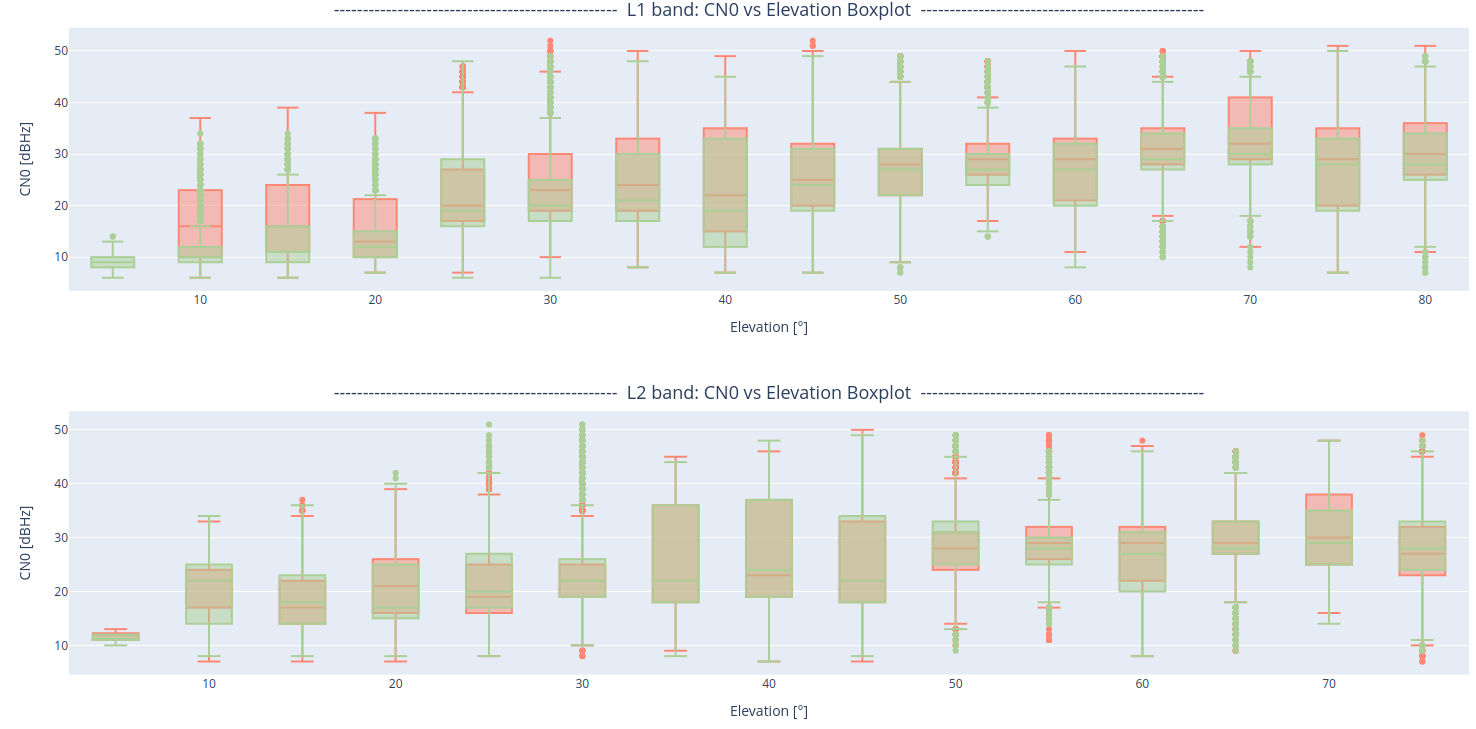

CN0 vs elevation

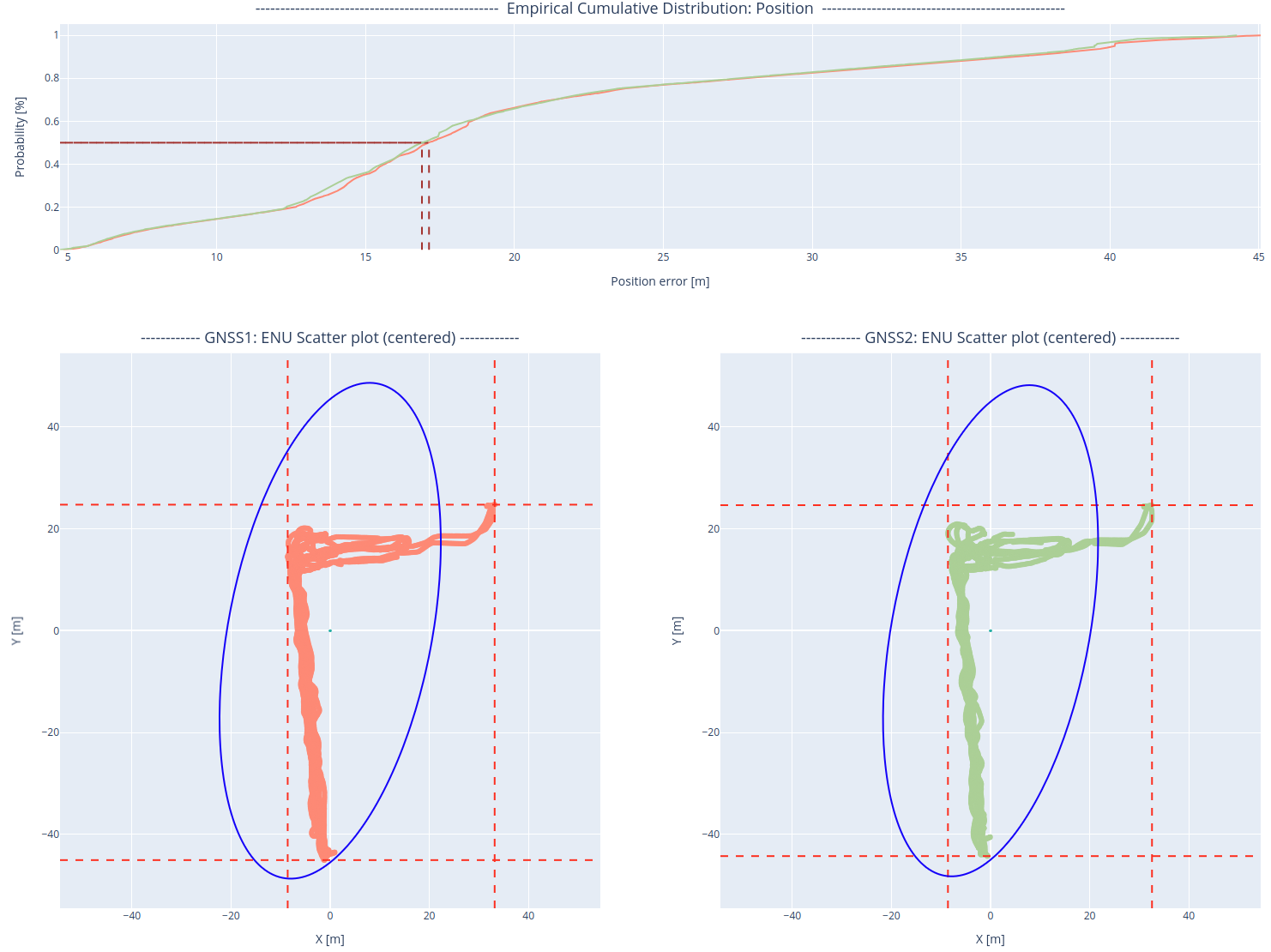

ENU position estimate statistics

Timeseries file:

antennas3-ch7604a.html

Link to KML file: 2024-05-17-08-46-07

Links to raw GNSS data: GNSS1, GNSS2

GNSS outage

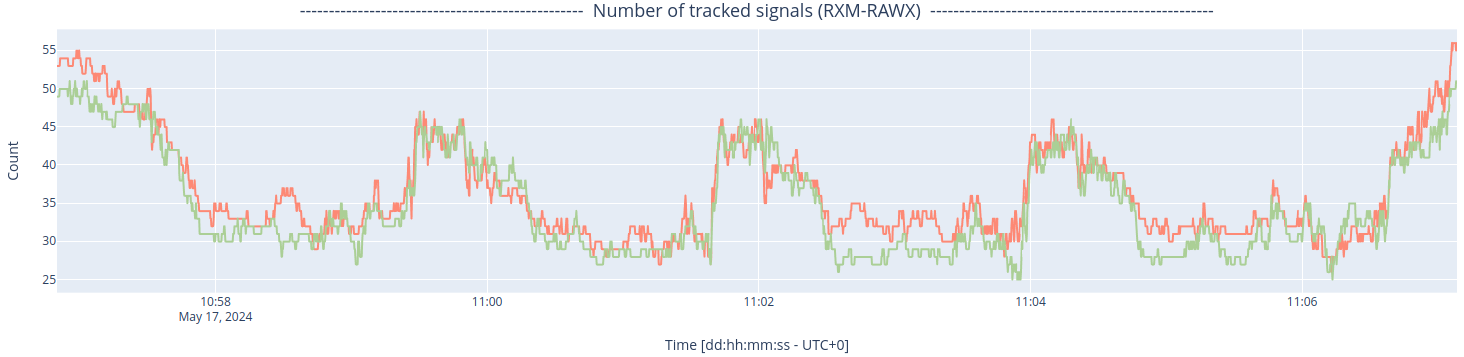

Number of tracked signals

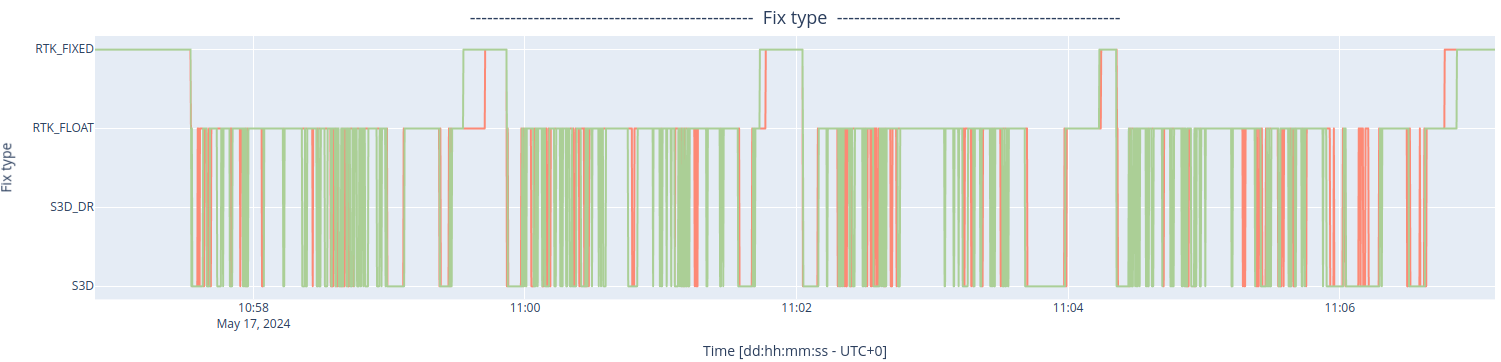

Fix types

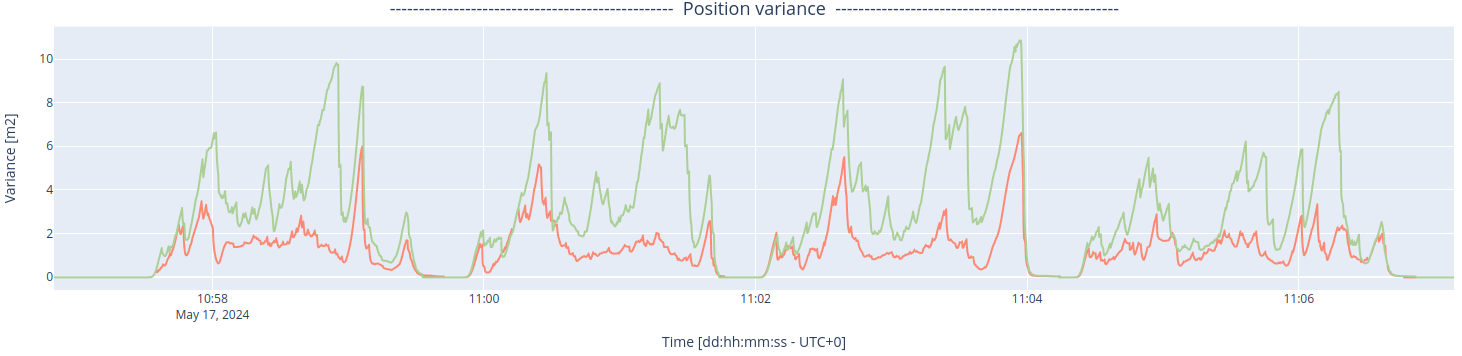

Position variance

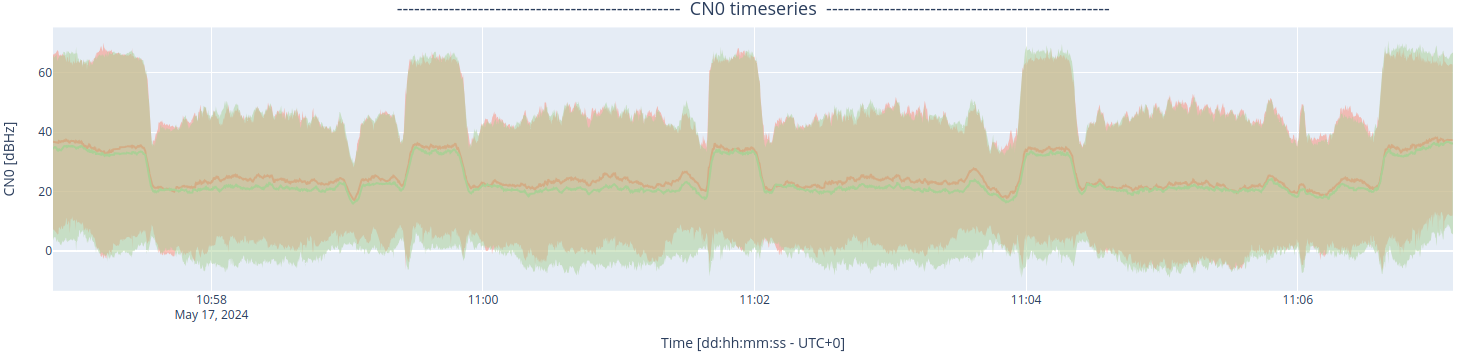

CN0 timeseries


CN0 histogram


CN0 vs elevation

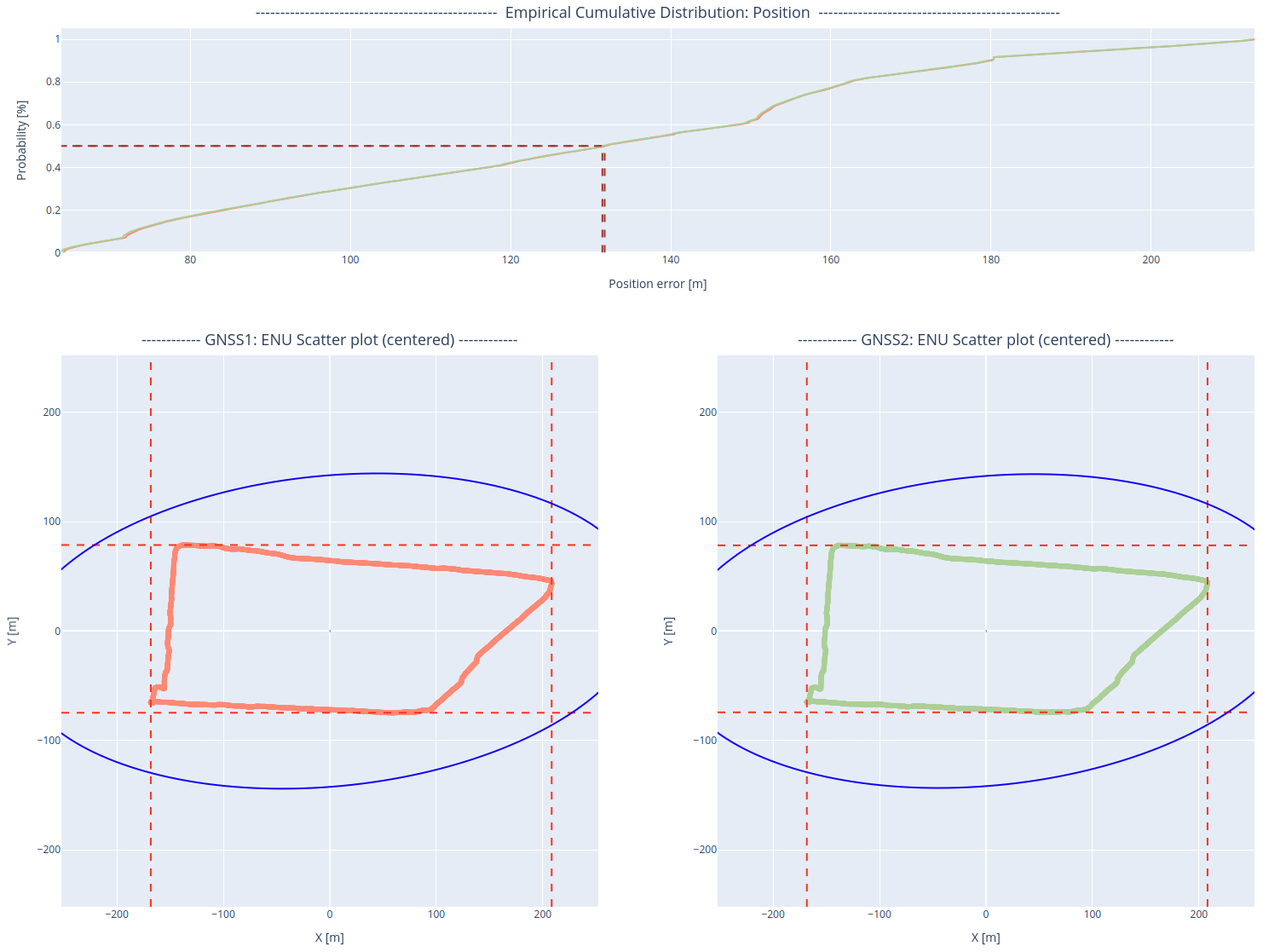

ENU position estimate statistics

Timeseries file:

antennas4-ch7604a.html

Link to KML file: 2024-05-17-08-56-49

Links to raw GNSS data: GNSS1, GNSS2

Observations

  • This antenna presents a significantly better stationary performance compared to the AH-3232.

  • This antenna appears to reject some signals at low elevations, which could help with multi-pathing.

  • The time to re-fix was faster in some scenarios.

  • The average C/N0 was slightly lower when moving next to trees, which could be due to the signals rejected at low elevations.

Conclusions

  • This antenna can serve as a replacement to the AH-3232 antenna.

  • Has good performance in all scenarios.
