HG-GOYH7156

Setup

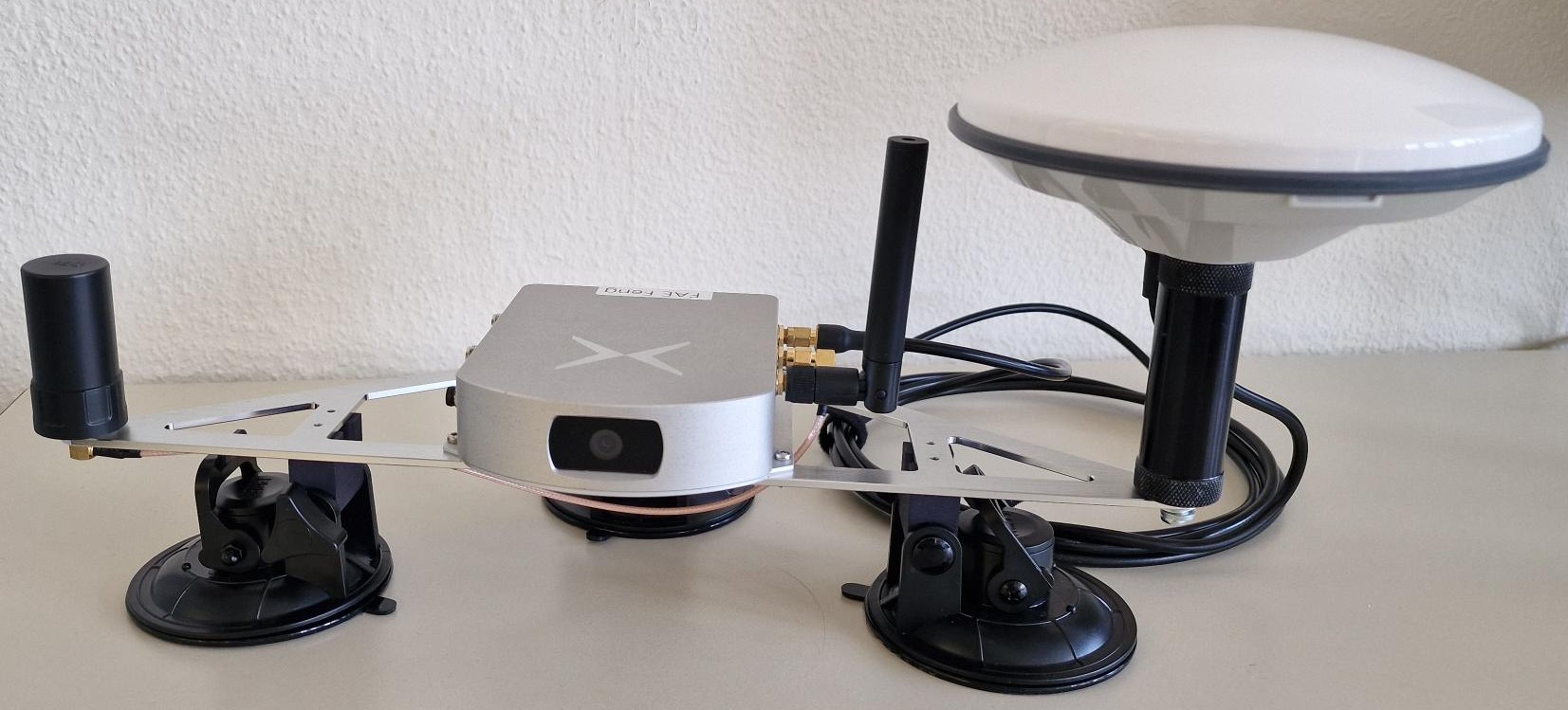

Fig. 1: VRTK2 with HG-GOYH7156

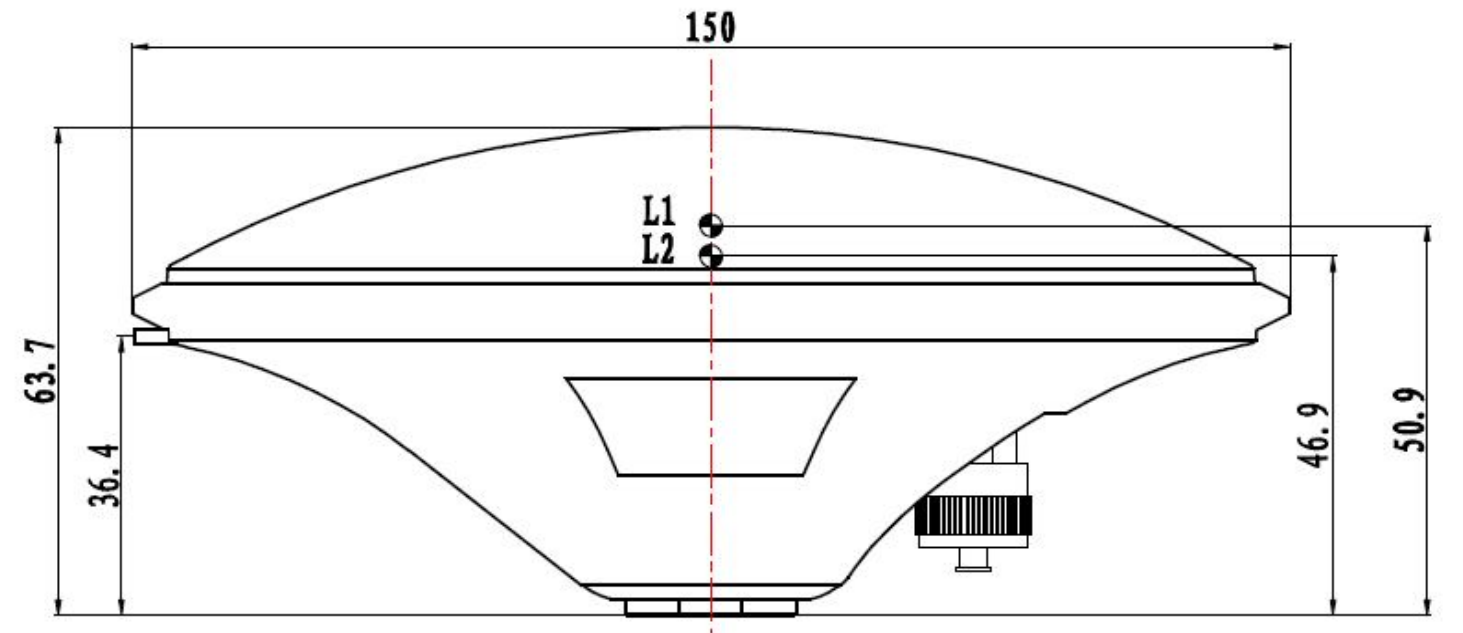

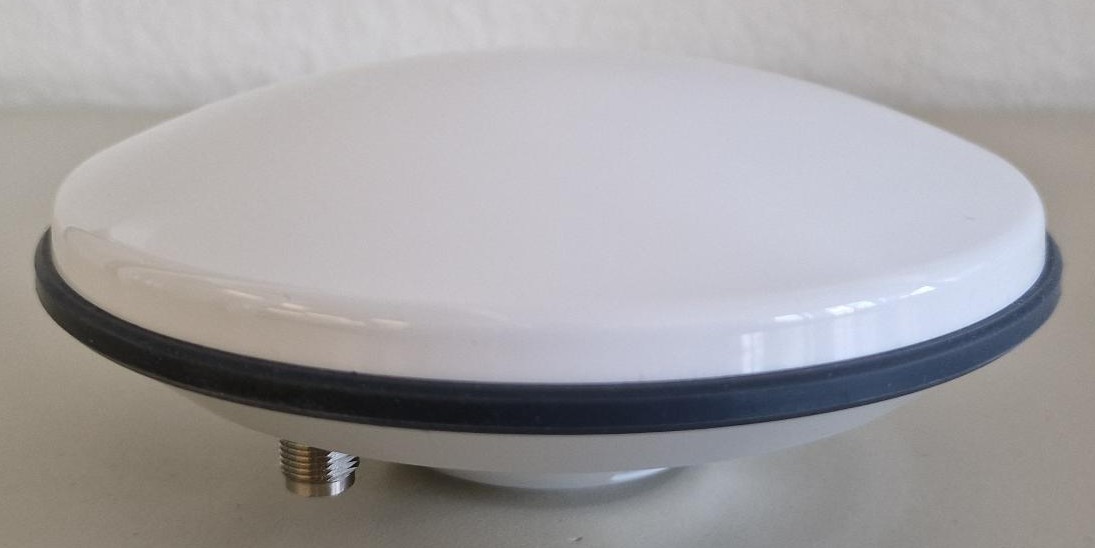

Fig. 2: HG-GOYH7156 antenna

Antenna phase center:


Test results

Stationary 1

In this test the HG-GOYH7156 antenna was connected to GNSS2.

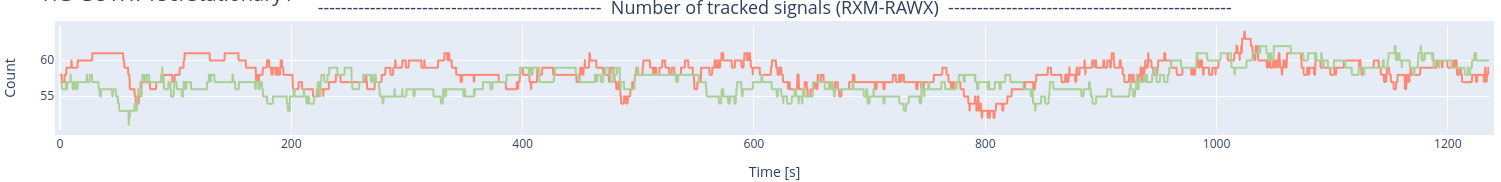

Number of tracked signals

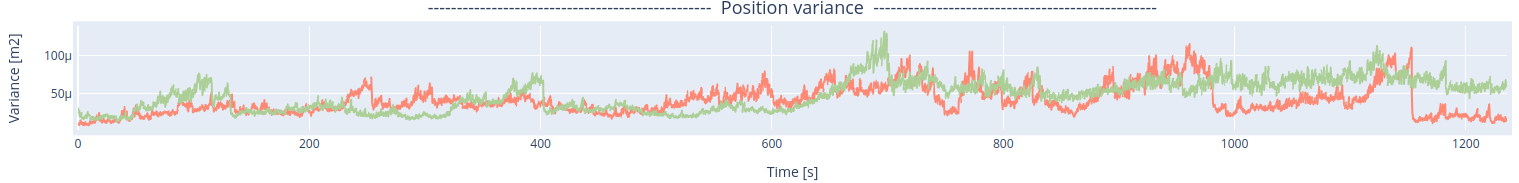

Position variance

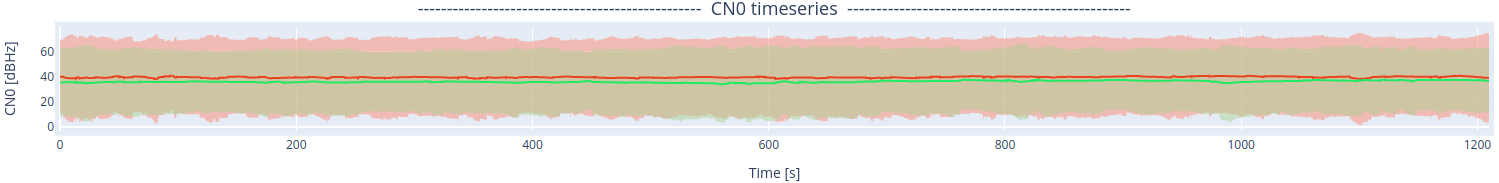

CN0 timeseries
CN0 histogram

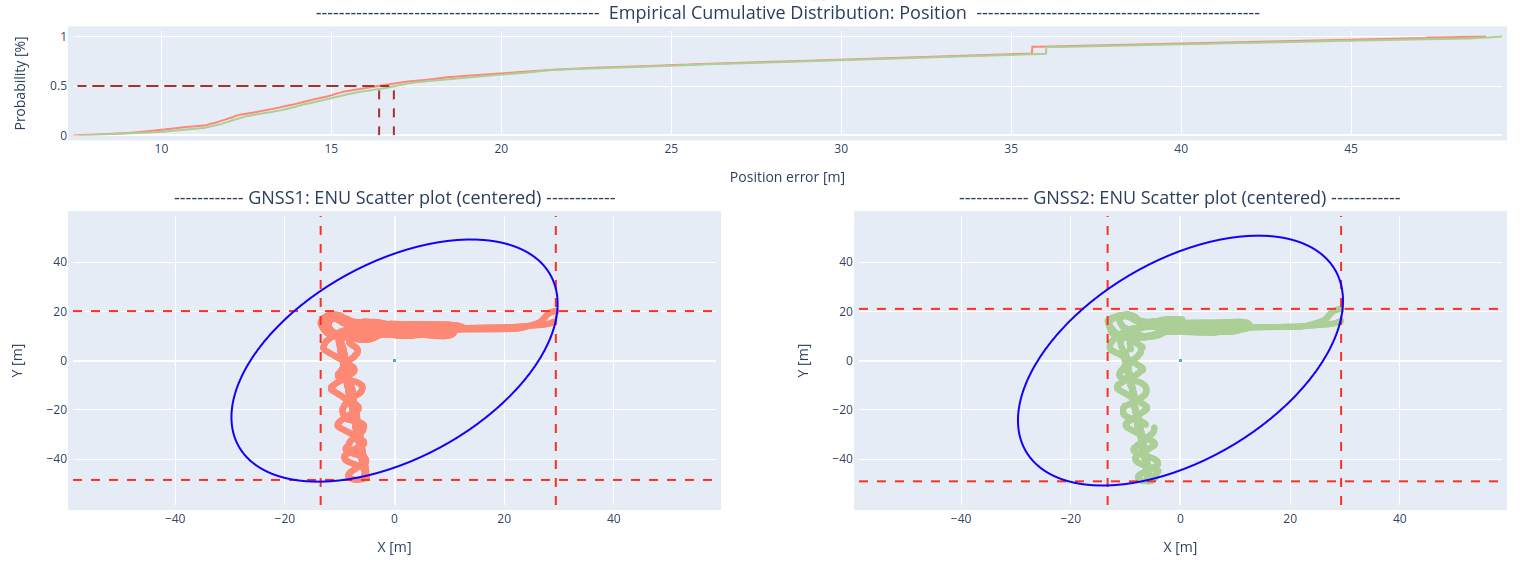

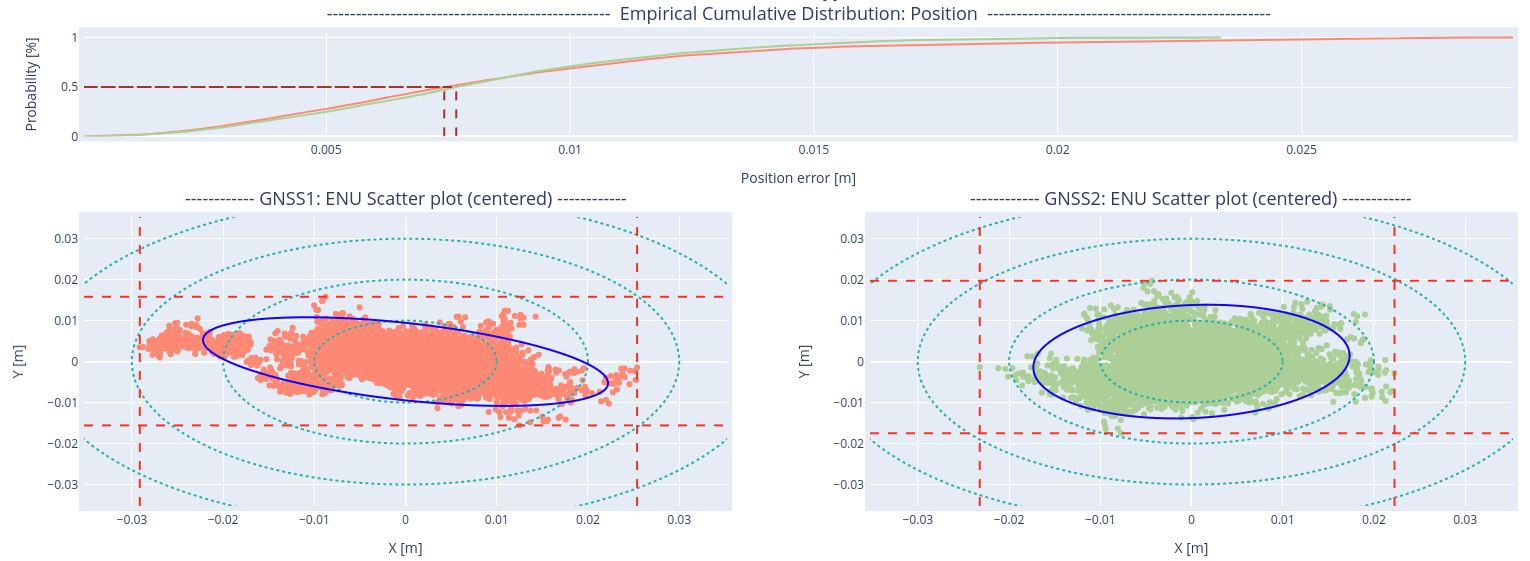

ENU position estimate statistics

Timeseries file:

antennas1-HG-GOYH7156.html

Link to KML file: 2023-05-25-13-34-07

Links to raw GNSS data: GNSS1, GNSS2

Stationary 2

In this test the HG-GOYH7156 antenna was connected to GNSS1.

Number of tracked signals

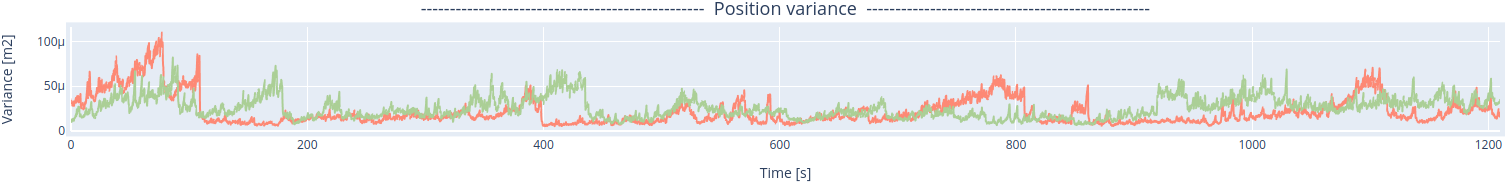

Position variance

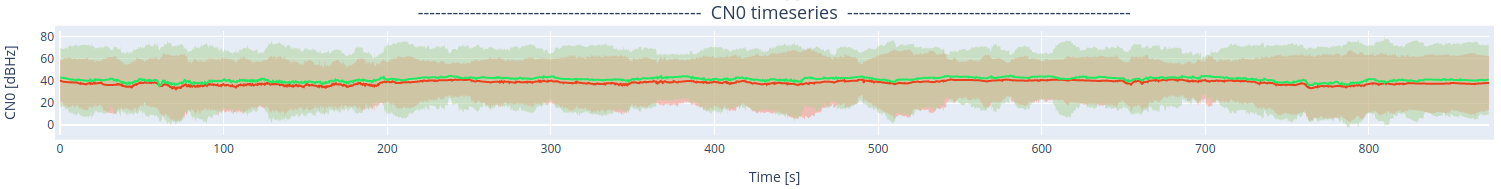

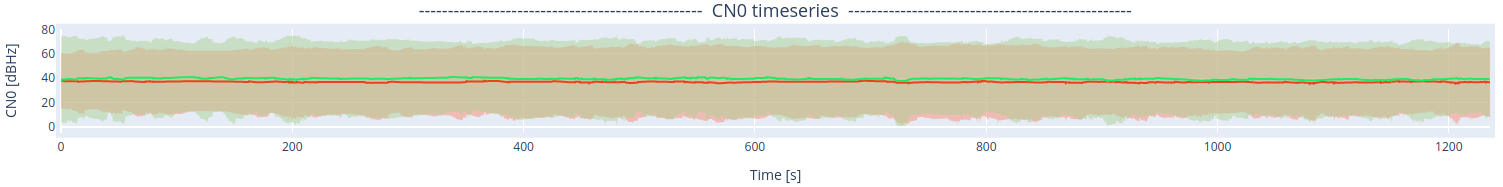

CN0 timeseries

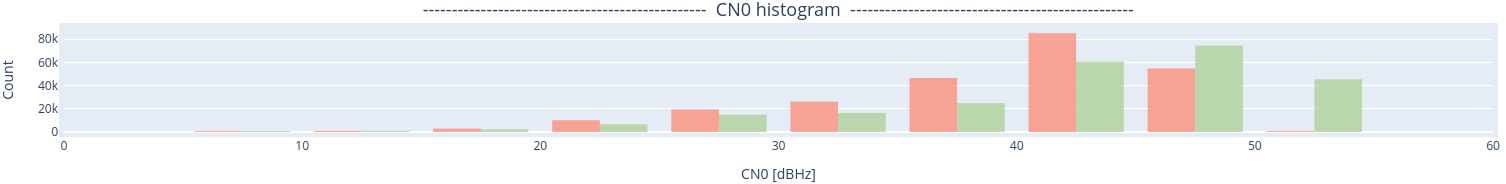

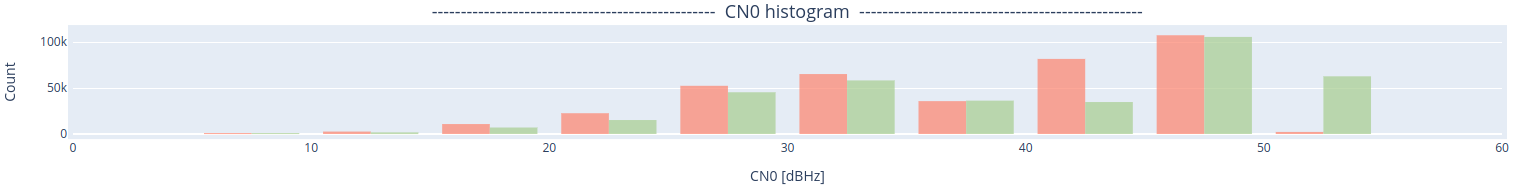

CN0 histogram

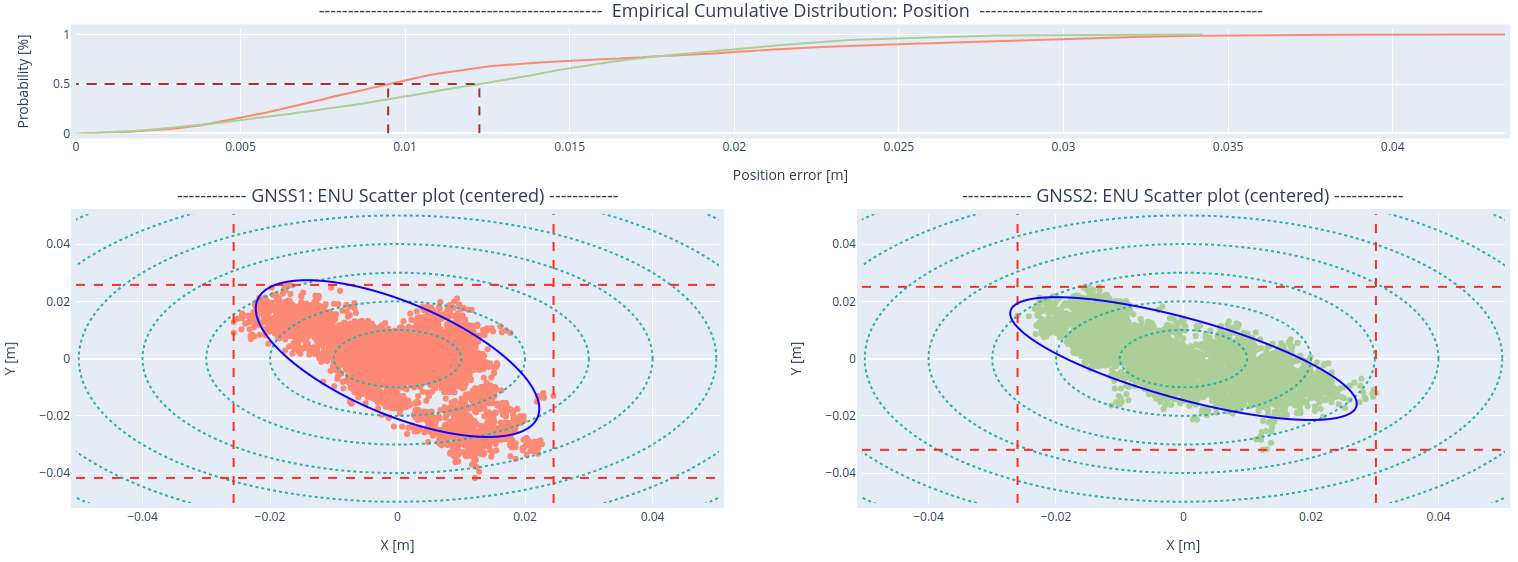

ENU position estimate statistics

Timeseries file:

antennas2-HG-GOYH7156.html

Link to KML file: 2023-05-25-14-04-19

Links to raw GNSS data: GNSS1, GNSS2

Urban canyon

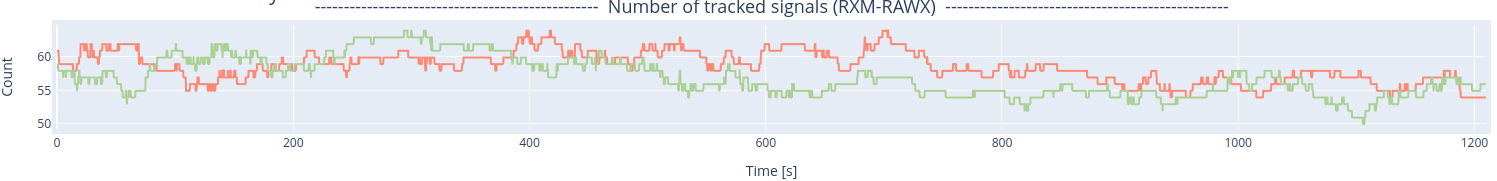

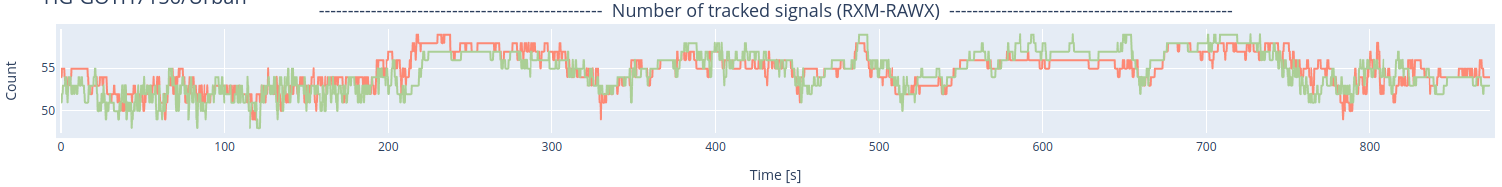

Number of tracked signals

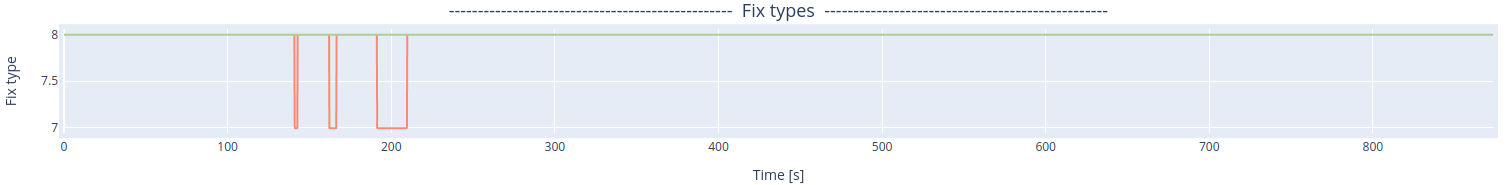

Fix types
Position variance

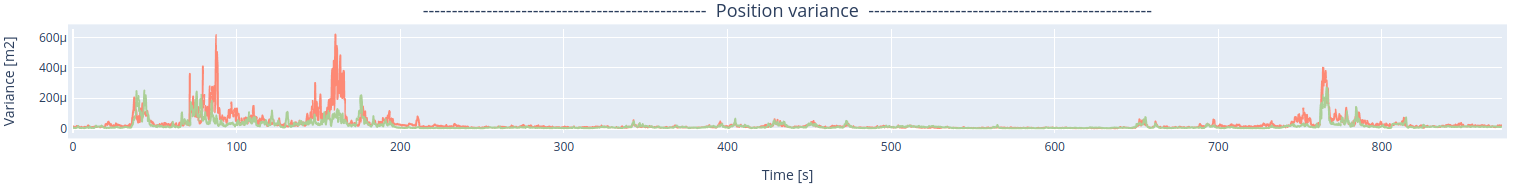

CN0 timeseries

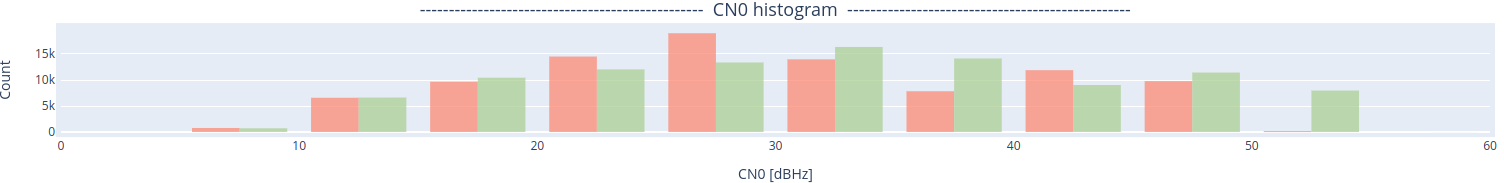

CN0 histogram

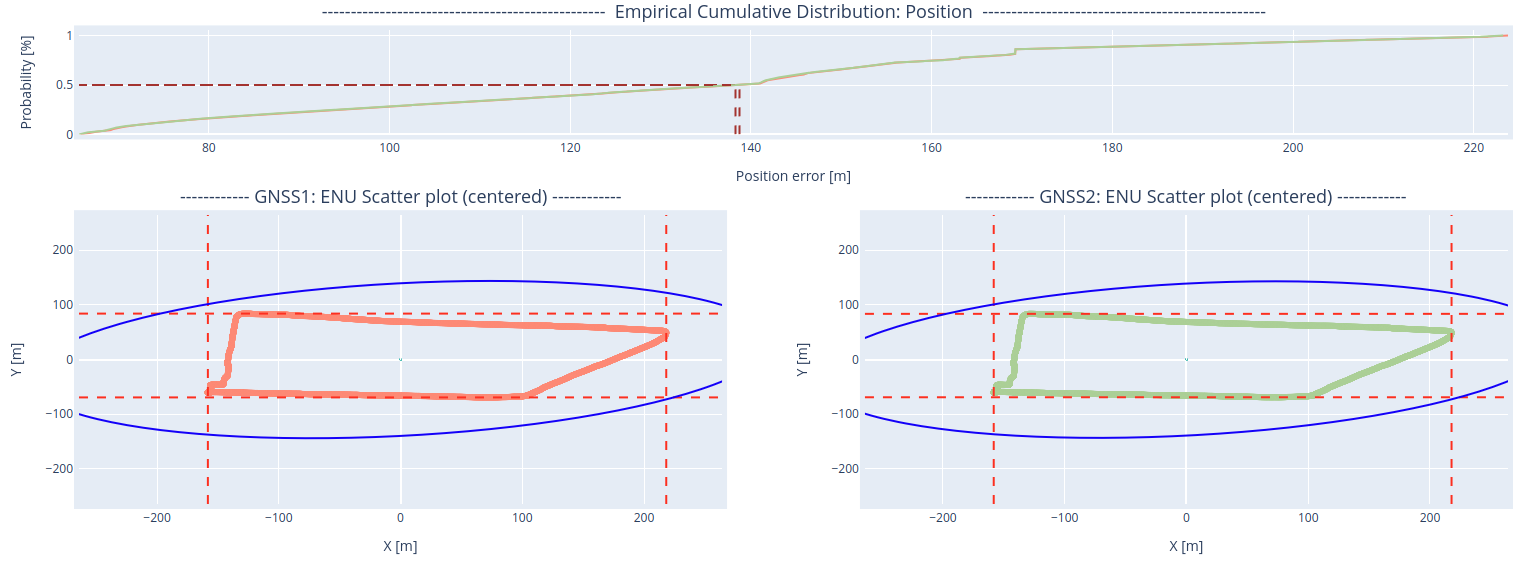

ENU position estimate statistics

Timeseries file:

antennas3-HG-GOYH7156.html

Link to KML file: 2023-05-26-09-54-04

Links to raw GNSS data: GNSS1, GNSS2

GNSS outage

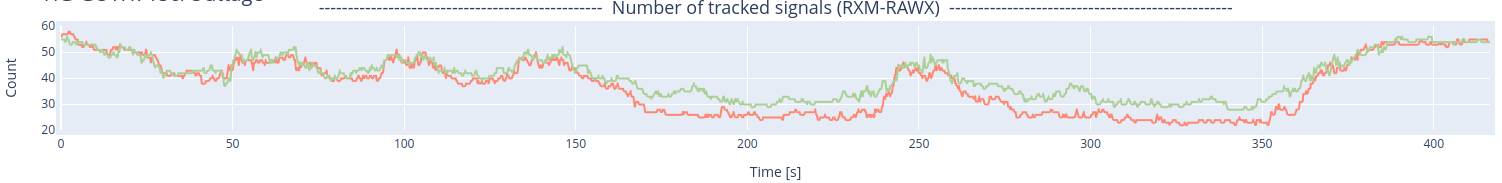

Number of tracked signals

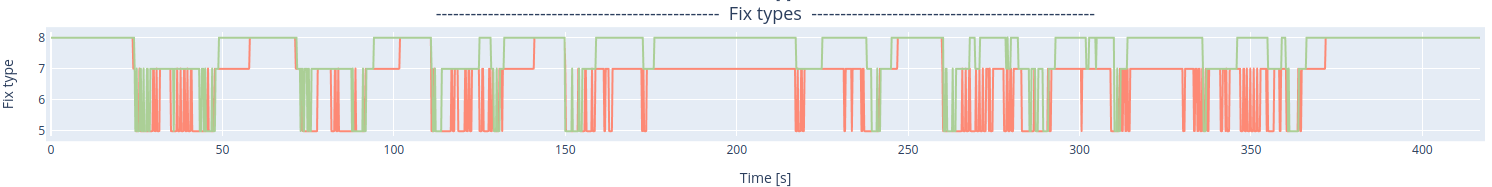

Fix types

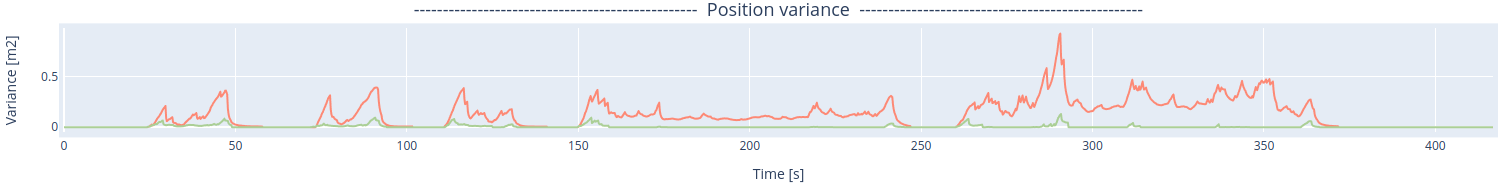

Position variance

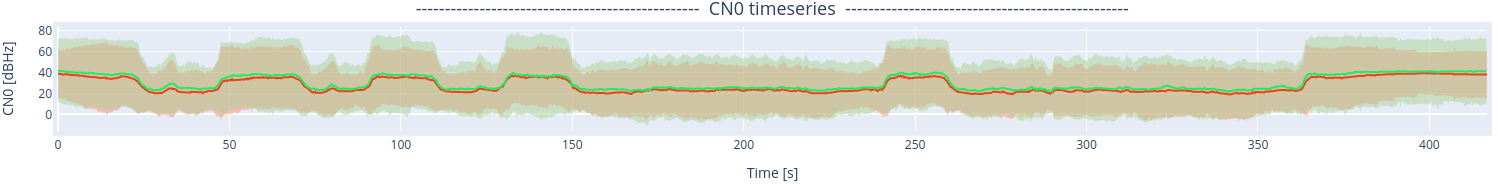

CN0 timeseries

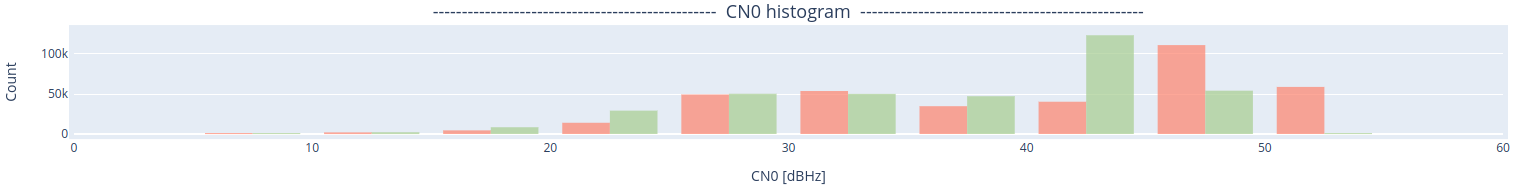

CN0 histogram
ENU position estimate statistics

Timeseries file:

antennas4-HG-GOYH7156.html

Link to KML file: 2023-05-26-10-09-02

Links to raw GNSS data: GNSS1, GNSS2

Conclusions

  • It consistently shows a better CN0 compared to the reference.

  • In terms of position accuracy, the difference is insignificant, we may need more tests.

  • Considering the type of antenna, it should perform better in multi-path areas, although we don't observe this behavior in the tests.

  • Acceptable.
